Description

Seco Crownloc™ Plus Chamfer Module 34 x 2 x 6 - 22mm SD400-C45-12.00/12.49

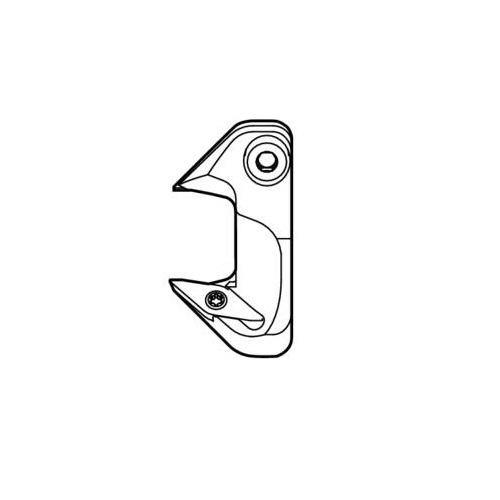

Crownloc™ Plus Chamfer Module

  • 45 degrees tool cutting edge angle.
  • 20mm overall length.

Drill Depth:

SD403
(min)		 SD403
(max)		 SD405
(min)		 SD405
(max)		 SD408
(min)		 SD408
(max)
6 22 6 47 47 84
7 23 7 48 48 88
7 27 7 55 55 97
7 33 7 60 60 105
8 35 8 67 67 114
8 38 8 72 72 123
9 43 9 79 79 132
9 45 9 83 83 140
10 49 10 89 89 149

All About Crownloc™ Plus:

  • Crownloc™ Plus is a new generation of Seco drills with exchangeable crowns.
  • Featuring a new geometry, coating and locking interface, Crownloc Plus improves chip evacuation and wear resistance in a variety of materials.
  • Crownloc Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body.

Specifications

  • AIMS SKU A0114129
  • Brand Seco
  • Model Number 02846082
  • Barcode Number 46082028000103
  • Net Weight (kg) 0.042
  • Designation SD400-C45-18.00/18.99

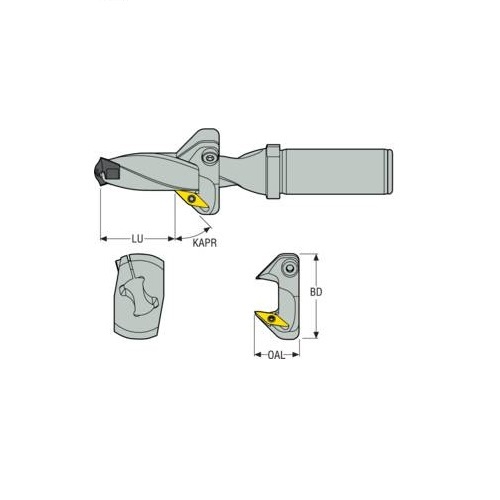

  • Drill Depth Usable Length SD405 (LUN2-LUX2) mm 9-83
  • Peripheral Effective Cutting Edge Count (ZEFP) 2
  • Drill Depth Usable Length SD403 (LUN1-LUX1) mm 9-45
  • Overall Length (OAL) mm 20
  • Drill Depth Usable Length SD408 (LUN3-LUX3) mm 83-140
  • Body Diameter (BD) X Cutting Depth Max (mm) 40 x 2
  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Type Crownloc™ Plus Chamfer Module
SKU: A0114129

Seco Crownloc™ Plus Chamfer Module 40 x 2 x 9 - 45mm SD400-C45-18.00/18.99

Crownloc™ Plus Chamfer Module

$568.18
RRP $655.60
SAVE $87.42 (13%)
