Seco Crownloc™ Plus Chamfer Module 34 x 2 x 6 - 22mm SD400-C45-12.00/12.49

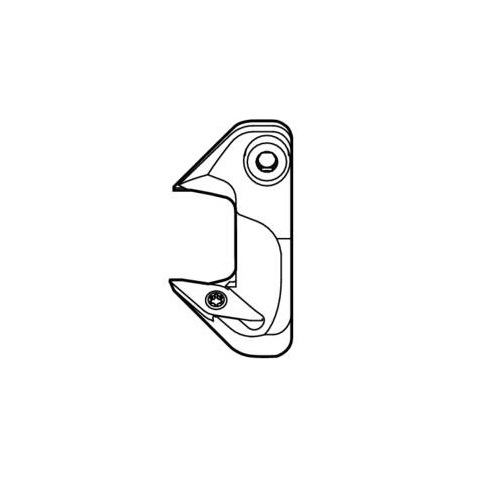

Crownloc™ Plus Chamfer Module

  • 45 degrees tool cutting edge angle.
  • 20mm overall length.

Drill Depth:

SD403
(min)
SD403
(max)
SD405
(min)
SD405
(max)
SD408
(min)
SD408
(max)
6 22 6 47 47 84
7 23 7 48 48 88
7 27 7 55 55 97
7 33 7 60 60 105
8 35 8 67 67 114
8 38 8 72 72 123
9 43 9 79 79 132
9 45 9 83 83 140
10 49 10 89 89 149

All About Crownloc™ Plus:

  • Crownloc™ Plus is a new generation of Seco drills with exchangeable crowns.
  • Featuring a new geometry, coating and locking interface, Crownloc Plus improves chip evacuation and wear resistance in a variety of materials.
  • Crownloc Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body.

Specifications

  • AIMS SKU A0114122
  • Brand Seco
  • Model Number 02846075
  • Barcode Number 46075028000105
  • Net Weight (kg) 0.031
  • Designation SD400-C45-12.00/12.49

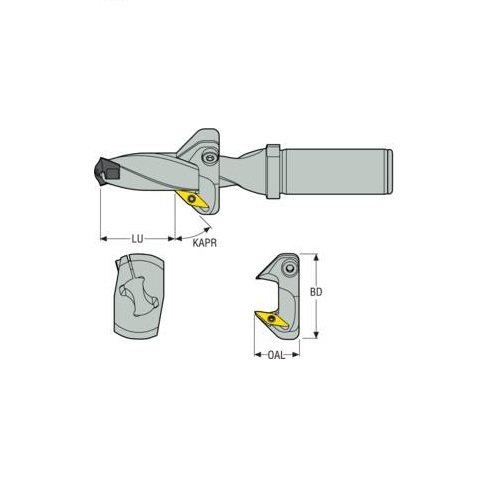

  • Drill Depth Usable Length SD405 (LUN2-LUX2) mm 6-47
  • Peripheral Effective Cutting Edge Count (ZEFP) 2
  • Drill Depth Usable Length SD403 (LUN1-LUX1) mm 6-22
  • Overall Length (OAL) mm 20
  • Drill Depth Usable Length SD408 (LUN3-LUX3) mm 47-84
  • Body Diameter (BD) X Cutting Depth Max (mm) 34 x 2
  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Type Crownloc™ Plus Chamfer Module
SKU: A0114122

Seco Crownloc™ Plus Chamfer Module 34 x 2 x 6 - 22mm SD400-C45-12.00/12.49

Crownloc™ Plus Chamfer Module

$481.44
RRP $555.50
SAVE $74.06 (13%)
