Specifications

AIMS SKU A0210249
Brand Samick
Model Number SC16VUU-SAMICK

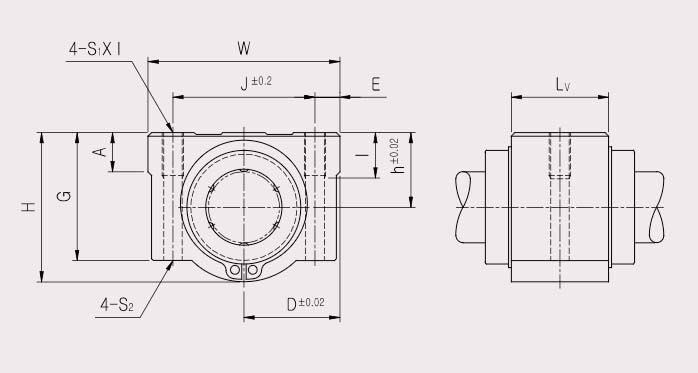

Nominal Shaft Diameter (mm) 16
Dimension A (mm) 9
Dimension D (mm) 25
Dimension E (mm) 7
Dimension G (mm) 32.5
Dimension H (mm) 38.5
Dimension W (mm) 50
Dimension J (mm) 36
L/B LM16UU
Dimension S₁ x ℓ (mm) M5x12
Dimension S₂ ø4.3
Dimension Lv (mm) 23.5
Basic Load Rating (N) - Dynamic ( C ) 770
Basic Load Rating (N) - Static (Co) 1170
Weight (gf) 132

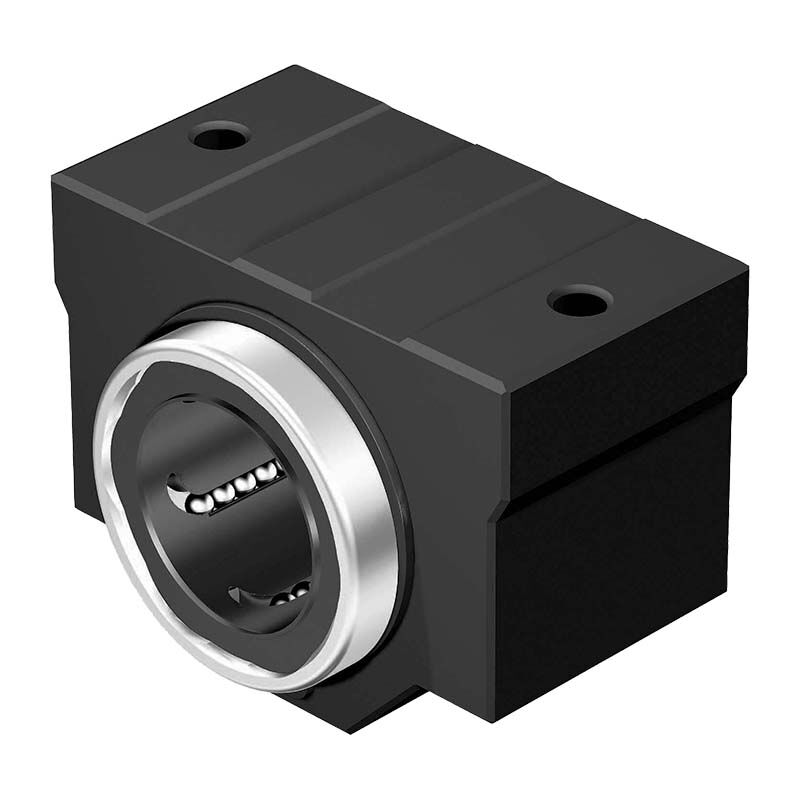

• Type Linear Bushing
• Linear Bushing Model SCV
• Linear Bushing Standard Asian Standard
