Description

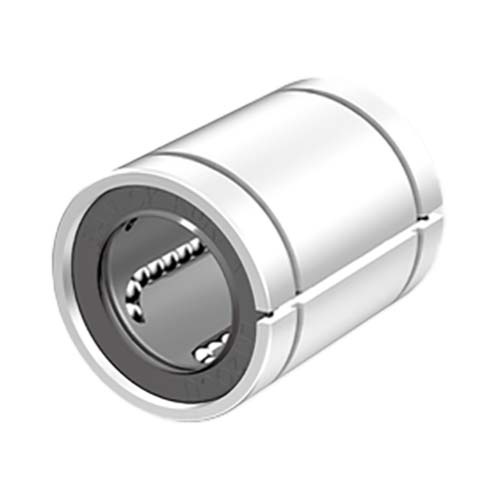

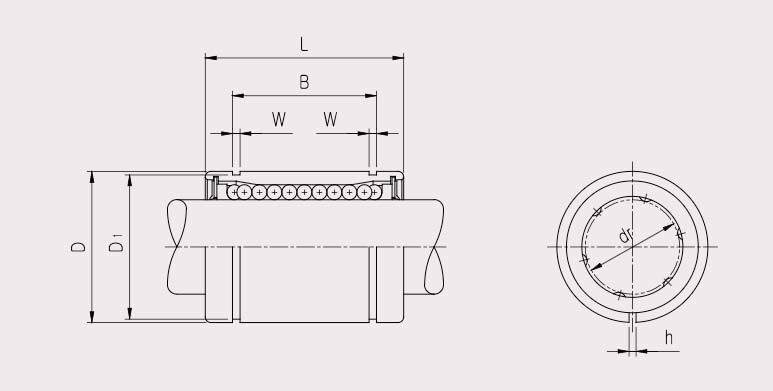

Samick Adjustable Linear Bushing (LME_AJ)

Note:

About Features of Linear Bushing

Structure and Features

Linear Bushing is a product used in combination with a cylindrical LM shaft to perform straight motion.
The balls in the loaded area of the nut are in point contact with the LM shaft. This allows straight motion with minimal friction resistance and achieves smooth motion.
The nut uses high-carbon chromium bearing steel and its outer and inner surfaces are ground after being heat-treated.
Linear Bushing is used for ofﬁce equipment, medical equipment, packaging machines, etc. without vibration, impact, etc. with light load.
However, it cannot be used with load in the rotational direction.

Interchangeability

The Linear Bushing and LM shaft are interchangeable with each other, so they can be used in combination freely.

Low Noise

The standard type contains a retainer integral-molded with resin to prevent the balls from falling, so lownoise smooth operation is possible.

Wide Array of Types

A wide array of types are available, such as standard type, clearance-adjustable type, open type, long type, ﬂange type, Fitted ﬂange type, center ﬂange type and LM case unit, allowing the user to select a type that meets the intended use.
