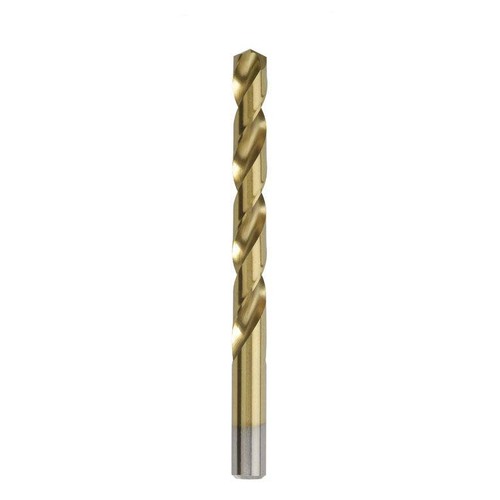

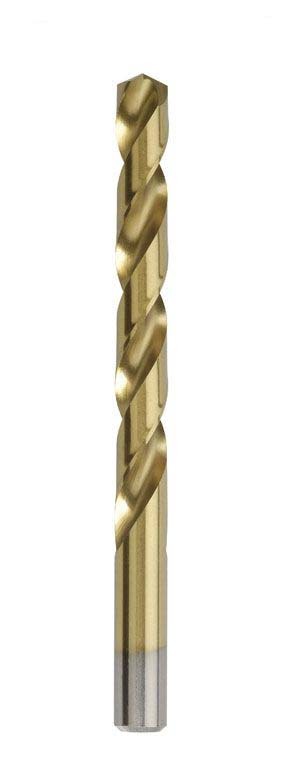

Saber Jobber Drill Bit M2-HSS TiN Coated (8011)

  • Hang Sell TiN Coated M2-HSS Twist Drill.
  • ANSI B94-11.
  • 135° Split Point (crankshaft point).
  • Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing end thrust.
  • The 135° point should be used to cut harder steel materials especially in deep hole applications.
  • In these situations it will produce thicker chips minimising work hardening of the cavity.
  • Faster penetration reduces abrasion and friction along the cutting edges.
  • Gold Finish TiN Coating (Titanium Nitride) helps to dissipate heat and reduces friction and cold welding.
  • The coating higher speed and feed rates can be achieved and tool life is greatly increased.
  • The TiN coating is achieved by Physical Vapour Deposition (PVD).
  • As with all surface coated tools, performance will deteriorate after resharpening.

Specifications

  • AIMS SKU A0205243
  • Brand Saber
  • Model Number 8011-7/32S
  • Barcode Number 9326518112297
  • Point Type 135° Split Point
  • Diameter (inch) 7/32
  • Flute Length (mm) 64
  • Overall Length (OAL) mm 95
  • Diameter in (mm) 5.56
  • Spindle Speed Stainless Steel RPM 687
  • Spindle Speed Tool Steel RPM 1031
  • Spindle Speed Cast Iron RPM 1375
  • Spindle Speed Malleable Iron RPM 1547
  • Spindle Speed Med. Carbon Steel RPM 1719
  • Spindle Speed Aluminium/Brass RPM 3494
  • Spindle Speed Wood/Plastic RPM 5213
  • Flute Type 30° Helix
  • Feed per Revolution (mm) 0.12
  • Spindle Speed Free Cutting Stl RPM 2463
  • Type Jobber Drill Bit
  • System of Measurement Imperial
  • Material M2-HSS TiN Coated
  • Surface Finish Gold Coloured
SKU: A0205243

Saber 7/32" Jobber Drill Bit M2-HSS TiN Coated (8011)

Saber Jobber Drill Bit M2-HSS TiN Coated (8011)

$7.28
RRP $9.47
SAVE $2.19 (23%)
