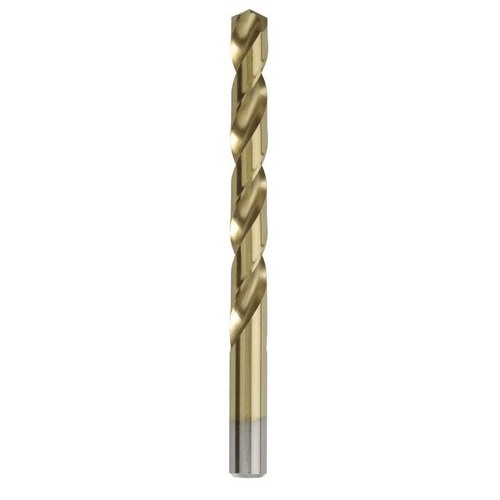

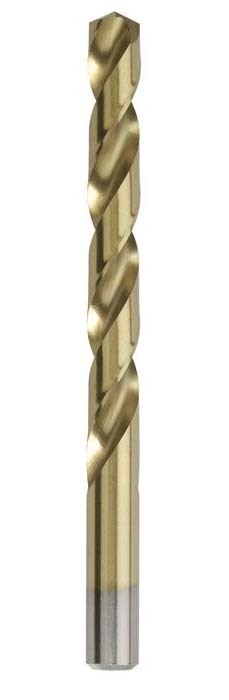

Saber TiN Coated M2-HSS Jobber Drill Bit (8010)

  • TiN Coated M2-HSS Twist Drill.
  • DIN338.
  • 135° Split Point (crankshaft point).
  • Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing end thrust.
  • The 135° point should be used to cut harder steel materials especially in deep hole applications.
  • In these situations it will produce thicker chips minimising work hardening of the cavity.
  • Faster penetration reduces abrasion and friction along the cutting edges.
  • Gold Finish TiN Coating (Titanium Nitride) helps to dissipate heat and reduces friction and cold welding.
  • The coating higher speed and feed rates can be achieved and tool life is greatly increased.
  • The TiN coating is achieved by Physical Vapour Deposition (PVD).
  • As with all surface coated tools, performance will deteriorate after resharpening.

Specifications

  • AIMS SKU A0199592
  • Brand Saber
  • Model Number 8010-12.00
  • Barcode Number 9326518111832
  • Diameter (mm) 12
  • Flute Length (mm) 101
  • Overall Length (OAL) mm 151
  • Surface Finish Gold Coloured
  • Spindle Speed Stainless Steel RPM 319
  • Spindle Speed Tool Steel RPM 478
  • Spindle Speed Cast Iron RPM 637
  • Spindle Speed Malleable Iron RPM 717
  • Spindle Speed Med. Carbon Steel RPM 796
  • Spindle Speed Aluminium/Brass RPM 1619
  • Spindle Speed Wood/Plastic RPM 2415
  • Flute Type 30° Helix
  • Type of Point 135° Split Point
  • Feed per Revolution (mm) 0.23
  • Spindle Speed Free Cutting Stl RPM 1141
  • Type Jobber Drill Bit
  • Material M2-HSS TiN Coated
SKU: A0199592

Saber 12mm TiN Coated M2-HSS Jobber Drill Bit - 8010-12.00, Pack of 5

Saber TiN Coated M2-HSS Jobber Drill Bit (8010)

$126.61
RRP $164.56
SAVE $37.95 (23%)
