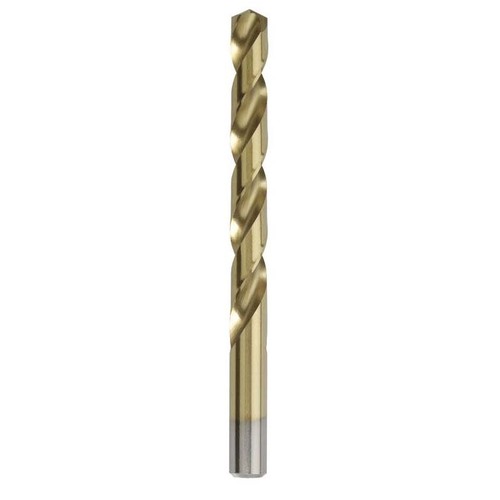

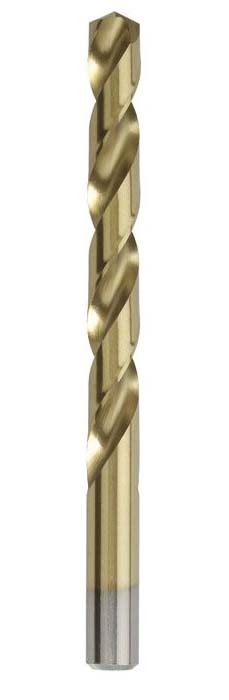

Saber TiN Coated M2-HSS Jobber Drill Bit - Clam Shell (8010)

  • TiN Coated M2-HSS Twist Drill.
  • DIN338.
  • 135° Split Point (crankshaft point).
  • Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing end thrust.
  • The 135° point should be used to cut harder steel materials especially in deep hole applications.
  • In these situations it will produce thicker chips minimising work hardening of the cavity.
  • Faster penetration reduces abrasion and friction along the cutting edges.
  • Gold Finish TiN Coating (Titanium Nitride) helps to dissipate heat and reduces friction and cold welding.
  • The coating higher speed and feed rates can be achieved and tool life is greatly increased.
  • The TiN coating is achieved by Physical Vapour Deposition (PVD).
  • As with all surface coated tools, performance will deteriorate after resharpening.

Specifications

  • AIMS SKU A0199617
  • Brand Saber
  • Model Number 8010-10.50S
  • Barcode Number 9326518138266
  • Diameter (mm) 10.5
  • Flute Length (mm) 87
  • Overall Length (OAL) mm 133
  • Surface Finish Gold Coloured
  • Spindle Speed Stainless Steel RPM 364
  • Spindle Speed Tool Steel RPM 546
  • Spindle Speed Cast Iron RPM 728
  • Spindle Speed Malleable Iron RPM 819
  • Spindle Speed Med. Carbon Steel RPM 910
  • Spindle Speed Aluminium/Brass RPM 1850
  • Spindle Speed Wood/Plastic RPM 2760
  • Flute Type 30° Helix
  • Type of Point 135° Split Point
  • Feed per Revolution (mm) 0.21
  • Spindle Speed Free Cutting Stl RPM 1304
  • Type Jobber Drill Bit
  • Material M2-HSS TiN Coated
SKU: A0199617

Saber 10.5mm TiN Coated M2-HSS Jobber Drill Bit (Clam Shell) - 8010-10.50S

TiN Coated M2-HSS Jobber Drill Bit - Clam Shell (8010)

$20.94
RRP $27.24
SAVE $6.30 (23%)
