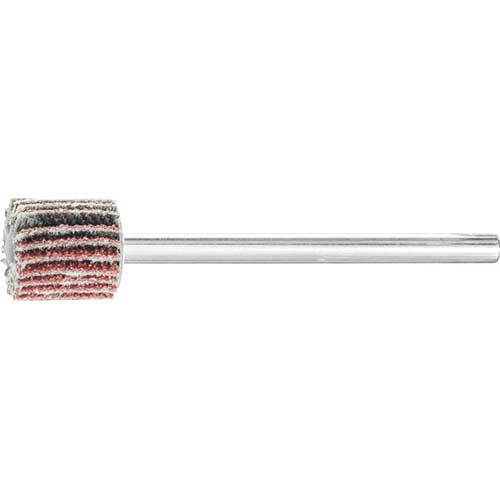

Pferd Fan Grinder

  • Fan Grinder Aluminium Oxide Shank
  • For universal applications from coarse to fine grinding.

Advantages

  • High flexibility
  • High stock removal due to the aggressive coated abrasive
  • Carrier material wears off uniformly and without residue on the workpiece surface, meaning that sharp abrasive grit is exposed at all times
  • Due to the flat cast core construction, the face of the mounted flap wheels can be used to work very close to edges and in corners

Recommendations for use

  • Mounted flap wheels achieve their best performance at a recommended cutting speed of 20 m/s. This provides an ideal compromise between stock removal, surface quality, thermal load on the workpiece and tool wear.
  • Flexible shafts, electric and air-powered straight grinders can be used as tool drives
  • Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.

Safety notes

  • For safety reasons, it is imperative to remain within the stated maximum permitted rotational speed at all times
  • Safety is only guaranteed if:
  • The clamping depth is at least 15 mm
  • The specified maximum rotational speed for unsupported shank lengths is not exceeded

Materials that can be worked

  • Aluminium
  • Copper
  • Other non-ferrous metals
  • Soft non-ferrous metal
  • Brass
  • Stainless steel (INOX)
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Annealed cast iron
  • Hardened, heat-treated steels over 1200 N/mm2 (over 38 HRC)
  • Steel materials with a hardness over 54 HRC
  • Steel, cast steel
  • Steels up to 1200 N/mmŒ_ (< 38 HRC)
  • Cast steel

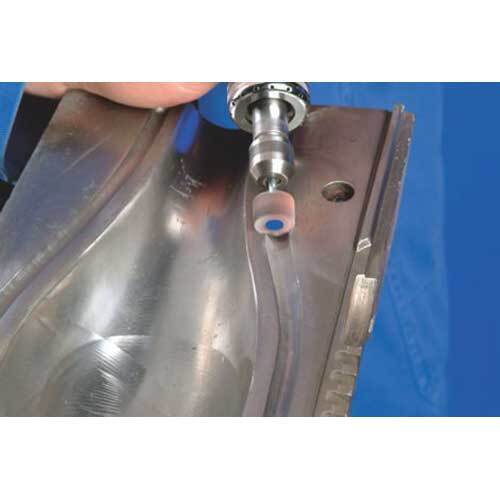

Can be used in

  • Leveling
  • Deburring
  • Surface work
  • Weld dressing
  • Structuring (matt finishing, brush matting and satin finishing)
  • Fine grinding in multiple steps

Drive types

  • Flexible shaft drive
  • Straight grinder

Classification

profi class 5.0 AAA018c002
eclass 8.1 21011318
eclass 7.0 21011318
eclass 4.1 21011305

Specifications

  • AIMS SKU A0151576
  • Brand Pferd
  • Model Number 44400002
  • Barcode Number 4007220661529
  • Grit 60
  • Grinder Head Size 10 x 10 mm
  • Maximum Speed 75000 RPM
  • Operational Speed 38000 RPM
  • Shank Diameter 3 mm
  • Type Flap Wheel
  • Material Aluminium Oxide
SKU: A0151576

Pferd Fan Grinder Al Oxide 10 x 10mm 60 Grit 44400002 - Pack of 10

Pferd Fan Grinder 10x10mm

$167.00
RRP $183.70
SAVE $16.70 (9%)
