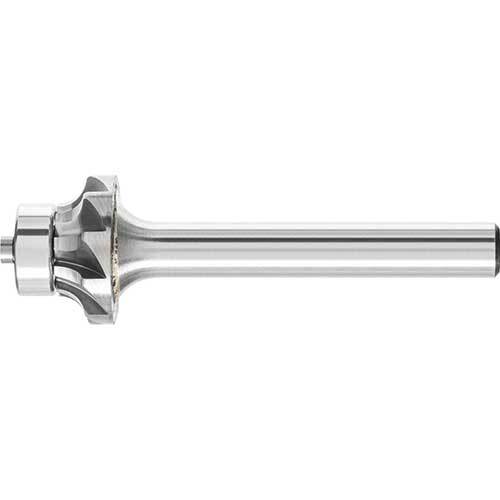

• Edge Burr V with Bearing Guide 6mm Shank V 1610/6 CR2.5
• Tungsten carbide burrs with the EDGE cut have been developed specifically for defined work on edges.
• They are suitable for chamfering, deburring and edge breaking and rounding, and are mainly used in steel and aluminium construction.

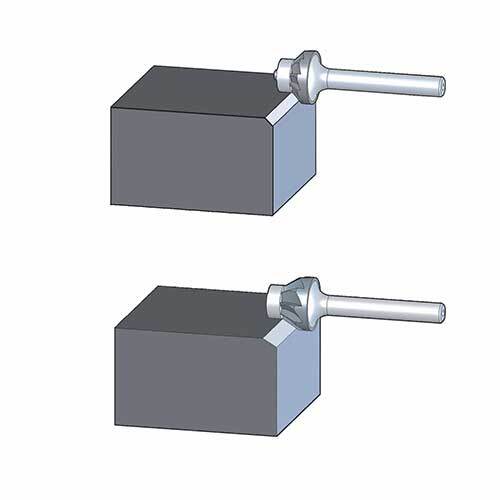

• The special design allows the burr to run directly along the edges, without damage to the workpiece. Thus, exact edge shapes can be created in a single-step operation. Among other things, rounding edges is a precautionary measure for anti-corrosion protection according to:
  - ISO 12944-3
  - ISO 8501-3
  - SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198)

Advantages:

• Special design for precise guidance
• Safe and comfortable to guide

Application examples:

• Rounding edges in preparation for the application of anti-corrosion coatings in shipbuilding, on crane systems and other steel constructions which are exposed to corrosion loading
• Chamfering in weld seam preparation for V-shaped seams (60åÁ, ISO 9692-1)
• Chamfering for edge breaking (45åÁ)

Recommendations for use:

• Use the burrs counter-rotationally. In order to produce a fine surface, finally, pass them over the edges in the direction of the rotation.

• Head size dia x length mm:16 x 10
• Radius: 2.5mm
• Cut:EDGE
