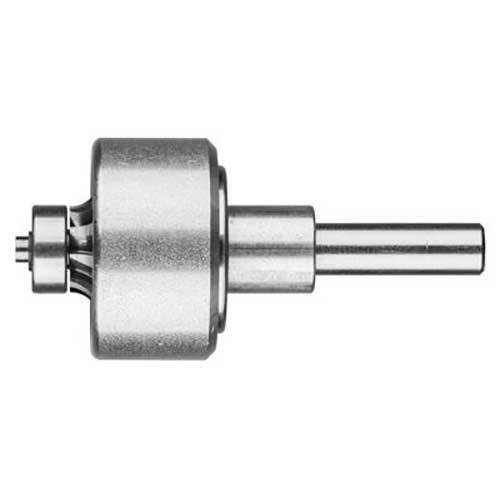

Pferd Edge Burr System Including Edge Guide

• Tungsten carbide burrs with the EDGE cut have been developed specifically for defined work on edges.
• They are suitable for chamfering, deburring and edge breaking and rounding, and are mainly used in steel and aluminium construction.

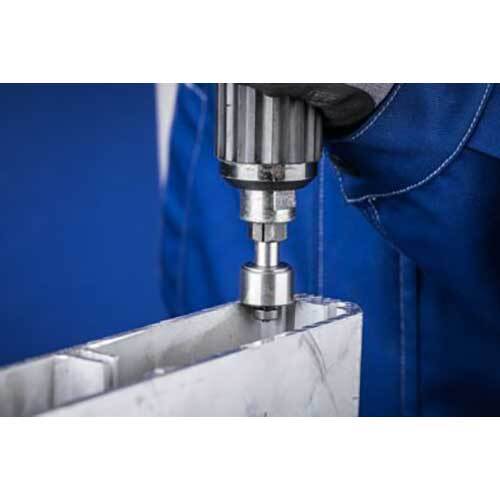

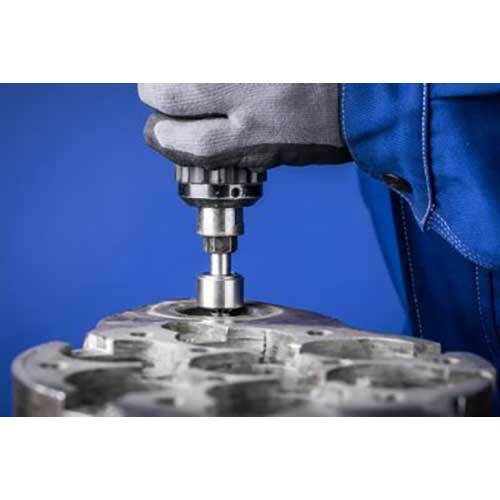

• The special design allows the burr to run directly along the edges, without damage to the workpiece. Thus, exact edge shapes can be created in a single-step operation. Among other things, rounding edges is a precautionary measure for anti-corrosion protection according to:
  - ISO 12944-3
  - ISO 8501-3
  - SOLAS XII/6.3 (Ref. T4/3.01 MSC.1/Circ.1198)

Advantages:

• Special design for precise guidance
• Safe and comfortable to guide
• The included guide makes it easier to achieve a consistent cut

Specifications

• Head size dia x length mm:16 x 12
• Radius: 3.0mm
