Specifications
- AIMS SKU A0105356
- Brand NACHI
- Model Number NU308/NACHI
- Bore Diameter x Outer Diameter x Width (mm) 40 x 90 x 23
- R (min) 1.5
- Basic Dynamic Load Rating (n) 58500
- Basic Static Load (N) 57000
- Limiting Speed (rpm) Grease Lubrication 6700
- Limiting Speed (rpm) Oil Lubrication 8500

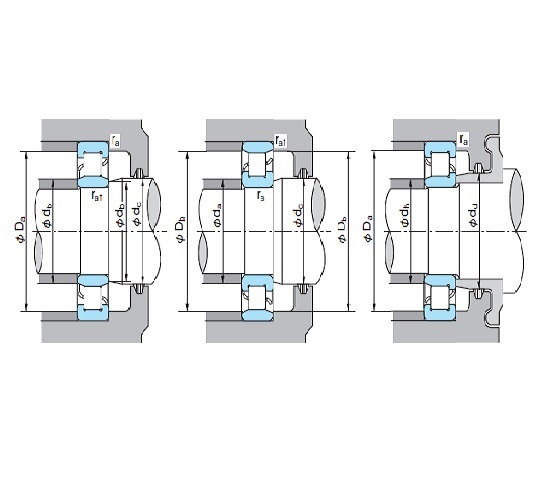

- Abutment And Fillet Dimension Da (min) Mm 48.5
- Abutment And Fillet Dimension Da (max) Mm 81.5
- Abutment And Fillet Dimension Ra (max) Mm 1.5

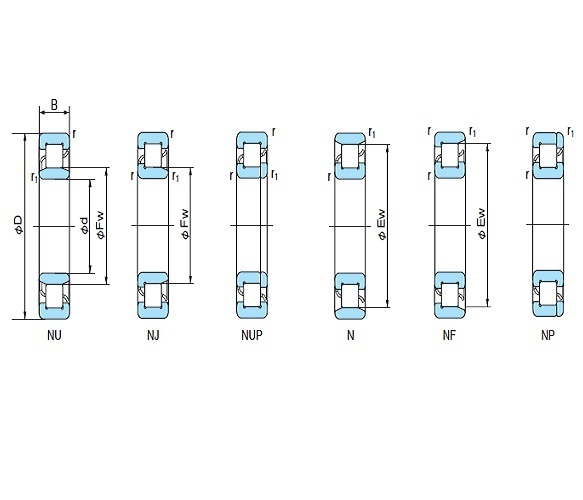

- Type Cylindrical Roller Bearings
- System of Measurement Metric
- Series No. 200 - 300
SKU: A0105356

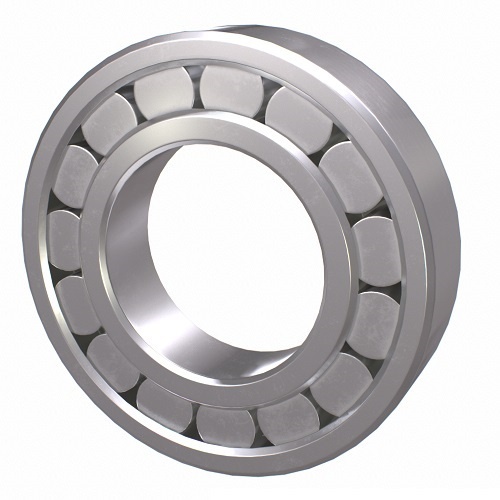

NACHI NU308 Cylindrical Roller Bearings 300 Series NU 40 x 90 x 23mm
Cylindrical Roller Bearings 300 Series NU
$89.72
