Nachi 24028EXQW33KC3 Spherical Roller Bearings Tapered Bore (C3) 140 x 210 x 69mm - NACHI

Description

Spherical Roller Bearings

Spherical roller bearings are double row self-aligning bearings capable of carrying heavy radial loads combined with light-moderate thrust loads in either direction.
Spherical Roller, Double-Row Barrel Roller Bearing Self Aligning Extra Light, Light & Medium Series designed to accommodate radial loads, as well as axial loads in both directions.
Spherical roller bearings are extremely resistant to heavy impact loads and their self-aligning feature allows full capacity loading despite shaft bending and alignment errors of the shaft relative to the housing.

Specifications

AIMS SKU A0153923

Brand NACHI

Model Number 24028EXQW33KC3/NACHI

Da (max) 200

Outer Diameter D (mm) 210

Hole Count N 6

Groove Width A 11

Hole Diameter du 6

Y0 2.23

Y2 3.39

Y1 2.28

Basic Static Load Rating Cor (n) 920000

Basic Dynamic Load Rating Cr (n) 720000

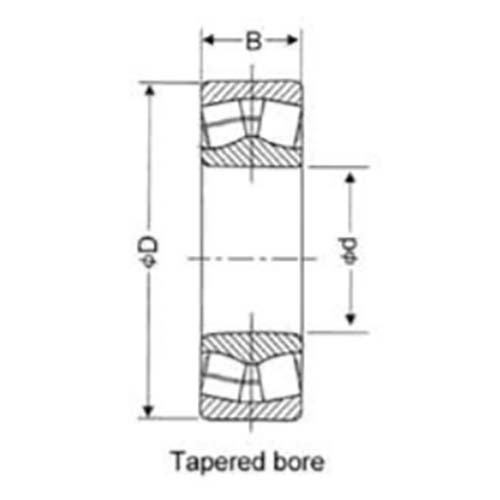

Bore Diameter x Outer Diameter x Width (mm) 140 x 210 x 69

Da (min) 150

Width B (mm) 69

Constant E 0.3

Bore Diameter d (mm) 140

Ra (max) 2

Oil Lubrication 3000

Grease Lubrication 2200

R (min) 2

Type Spherical Roller Bearings
System of Measurement Metric
Series 21300-22300

Calculate Shipping

Resources

Technical Data Sheet

Nachi FYH Bearing Range Catalogue
