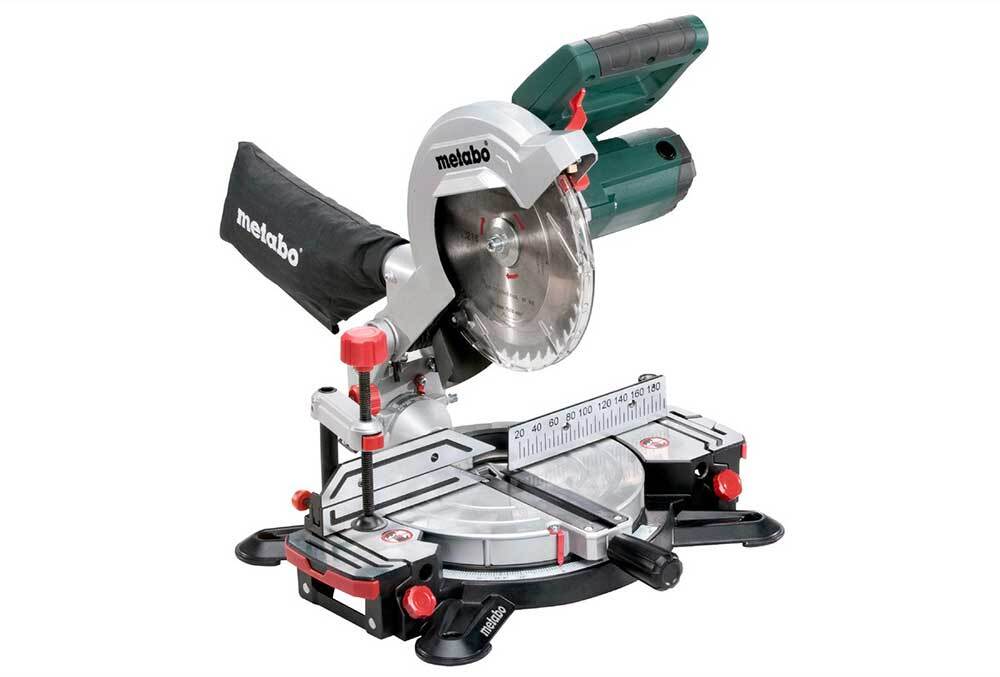

Metabo KS 216 M Lasercut Compound Mitre Saw

Compact crosscut and mitre saw of the mobile M-class - light, precise, user-friendly
Compact light weight, suitable also for one-handed transport
Robust die-cast aluminium design for the highest demands
Easy transport thanks to ergonomically-designed handles and saw head lock
Effective dust extraction via integrated dust scoop
Fast and precise setting of common angles using stop points
Laser for exact display of the cutting line (mains powered, no batteries required)
Extendable table width extensions, also removable to put underneath extremely long work pieces
Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
Sliding high rear fence profiles for safe sawing
Quick-action clamp for secure fixing of the work piece from the top or front
Saw head can be inclined to the left, with additional angle range for undercuts
All scales and operating elements are visible from the working position and can be operated intuitively
Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required

Includes

Technical Data

Characteristics

Dimensions	475 x 465 x 285 mm // 1.6 x 1.6 x 1 ft
Support surface	155 x 725 mm
Maximum cutting width 90°/45°	120 / 80 mm // 4 11/16 / 3 1/8 "
Maximum cutting depth at 90°/45°	60 / 45 mm // 2 3/8 / 1 3/4 "
Cutting capacity 90°/90°	120 x 60 mm // 4 11/16 x 2 3/8 "
Cutting capacity 45°/45°	80 x 45 mm // 3 5/32 x 1 3/4 "
Turntable setting left/right	47 / 47 °
Saw blade tilt left/right	47 / 2 °
Saw blade	216 x 30 mm // 8 1/2 x 1.181 "
Rated input power S1 100%	1100 W
Rated input power S6 20%	1350 W
No-load speed	5000 rpm
Revolutions at rated load	3450 rpm
Cutting speed	57 m/s // 187 ft/s
Weight	9.4 kg / 20.7 lbs
Cable length	2 m / 7 ft
