Metabo KGS 216 M Sliding Compound Mitre Saw

  • Crosscut and mitre saw of the mobile M-class with sliding function - light, precise, user-friendly
  • Large cutting capacity thanks to sliding function for wide work pieces

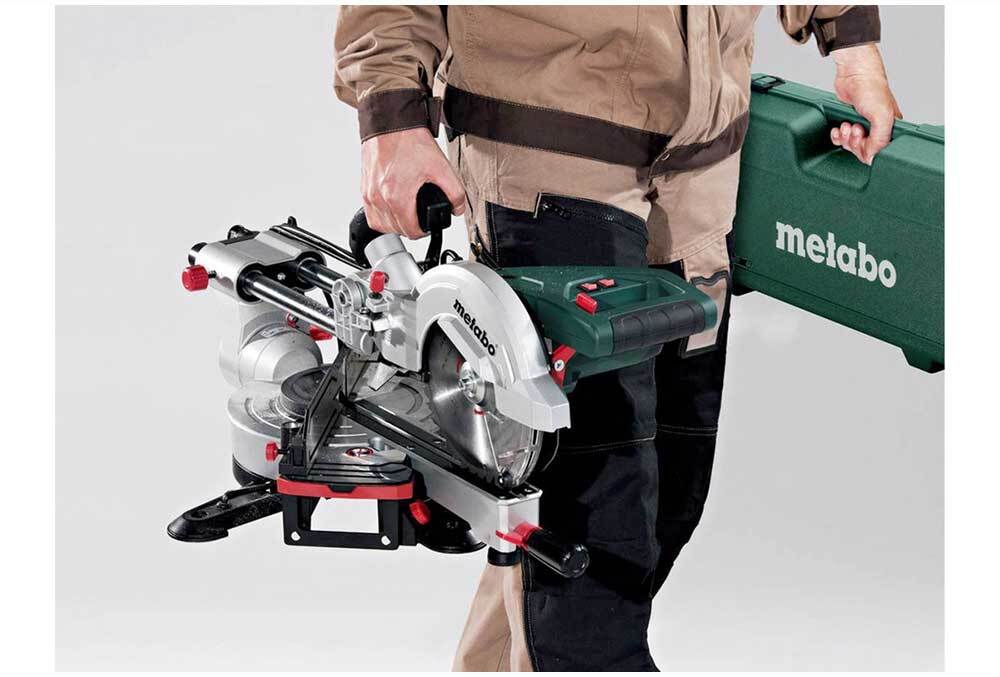

  • Compact light weight, suitable also for one-handed transport
  • Robust die-cast aluminium design for the highest demands
  • Easy transport thanks to ergonomically-designed handles and saw head lock
  • Effective dust extraction via integrated dust scoop
  • Fast and precise setting of common angles using stop points
  • Laser for exact display of the cutting line (mains powered, no batteries required)
  • Extendable table width extensions, also removable to put underneath extremely long work pieces
  • Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
  • Sliding high rear fence profiles for safe sawing

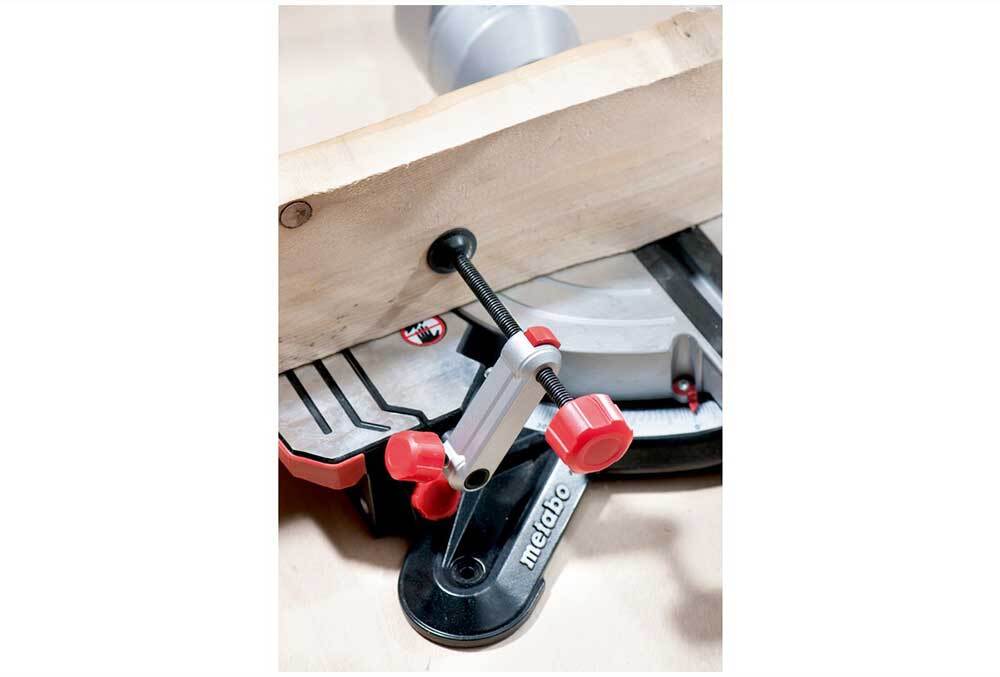

  • Quick-action clamp for secure fixing of the work piece from the top or front
  • Depth guide for easy creation of grooves
  • Saw head can be inclined to the left, with additional angle range for undercuts
  • All scales and operating elements are visible from the working position and can be operated intuitively
  • Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required

Includes

  • Carbide saw blade (40 teeth)
  • 2 Table length extensions
  • Length Guide
  • Material clamp
  • Tool for saw blade change
  • Cable winder
  • Chip Collection Bag

Technical Data

  • Maximum cutting width 90°/45°: 305 / 205 mm // 12 / 8 1/16 "
  • Maximum cutting depth at 90°/45°: 65 / 36 mm // 2 9/16 / 1 13/32 "
  • Rated input power S1 100%: 1200 W
  • Rated input power S6 20%: 1500 W

Characteristics

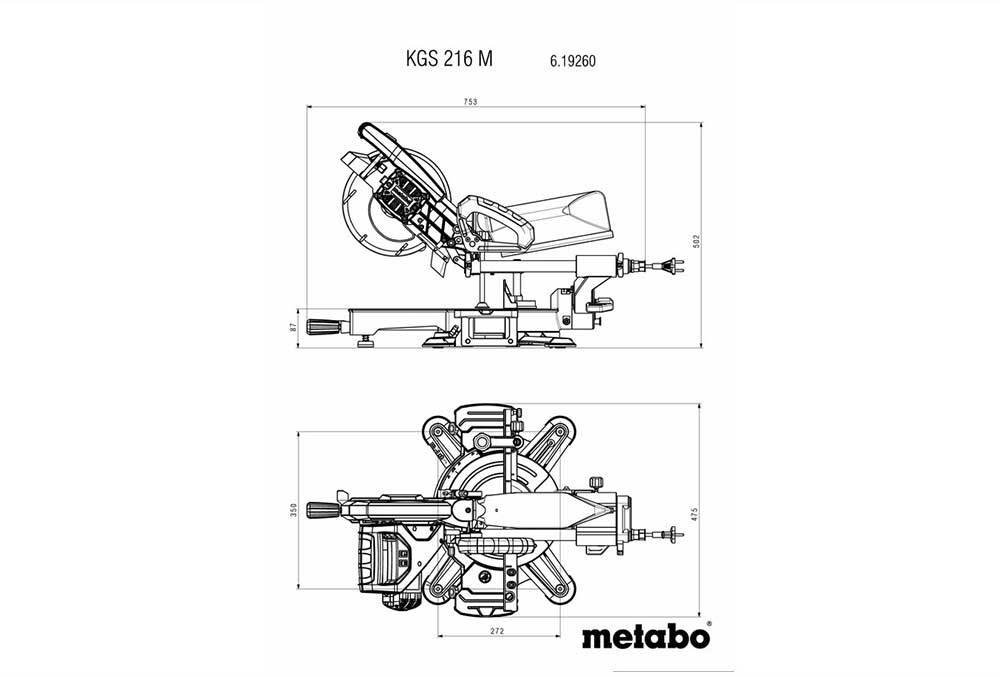

Dimensions 760 x 475 x 340 mm // 2.5 x 1.6 x 1.1 ft
Support surface 345 x 730 mm
Maximum cutting width 90°/45° 305 / 205 mm // 12 / 8 1/16 "
Maximum cutting depth at 90°/45° 65 / 36 mm // 2 9/16 / 1 13/32 "
Cutting capacity 90°/90° 305 x 65 mm // 12 x 2 1/2 "
Cutting capacity 45°/45° 205 x 36 mm // 8 1/16 x 1 13/32 "
Turntable setting left/right 47 / 47 °
Saw blade tilt left/right 47 / 2 °
Saw blade 216 x 30 mm // 8 1/2 x 1.181 "
Rated input power S1 100% 1200 W
Rated input power S6 20% 1500 W
No-load speed 5000 rpm
Revolutions at rated load 3750 rpm
Cutting speed 57 m/s // 187 ft/s
Weight 13.5 kg / 29.8 lbs
Cable length 2 m / 7 ft



Noise Emission

Sound pressure level 97 dB(A)
Sound power level (LwA) 104 dB(A)
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0175107
  • Brand Metabo
  • Model Number 619260190
  • Barcode Number 4007430256584
  • Type Mitre Saw
SKU: A0175107

Metabo KGS 216 M 1500W 216 x 30mm Sliding Compound Mitre Saw 619260190
