Description

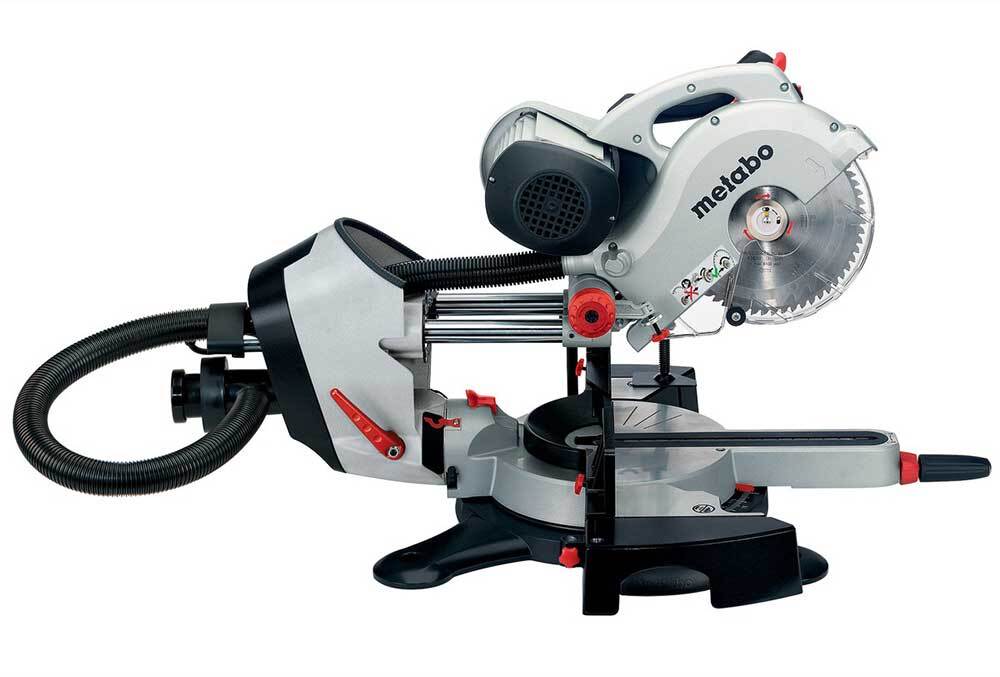

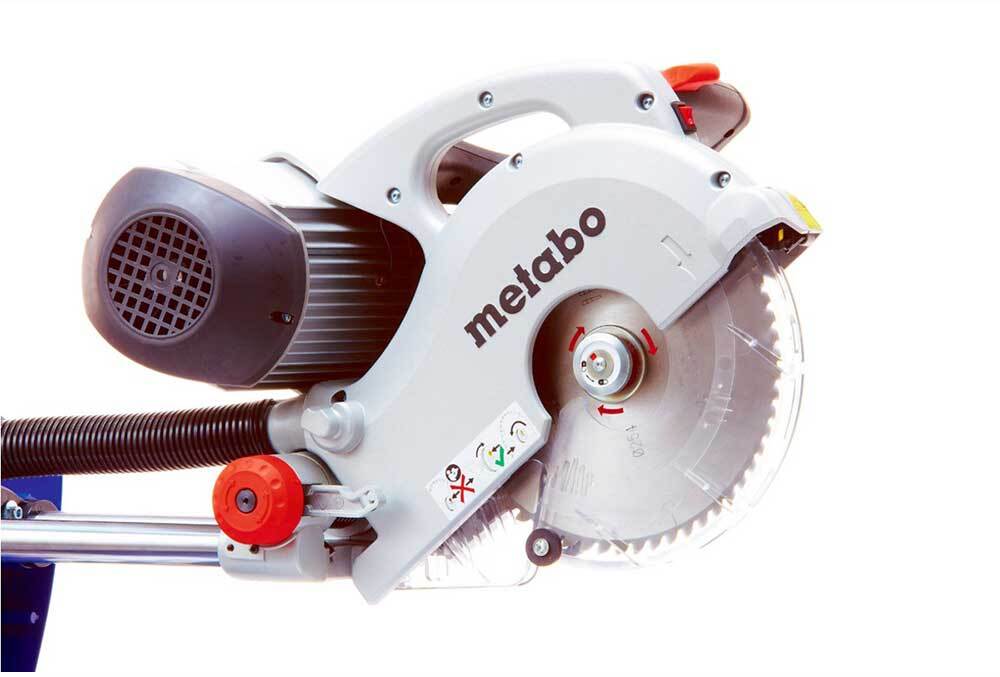

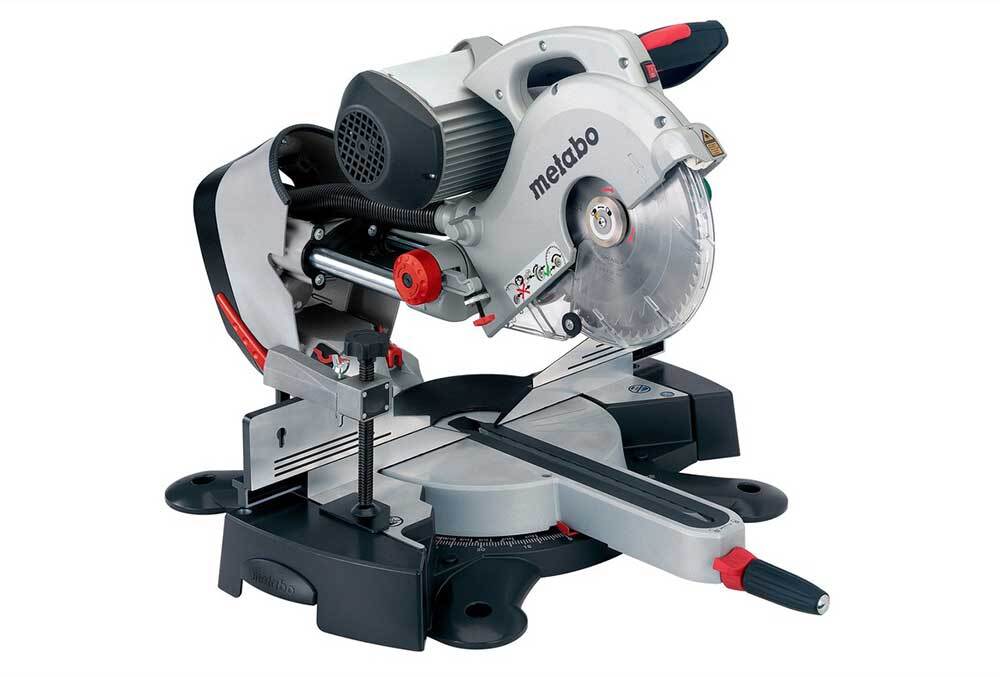

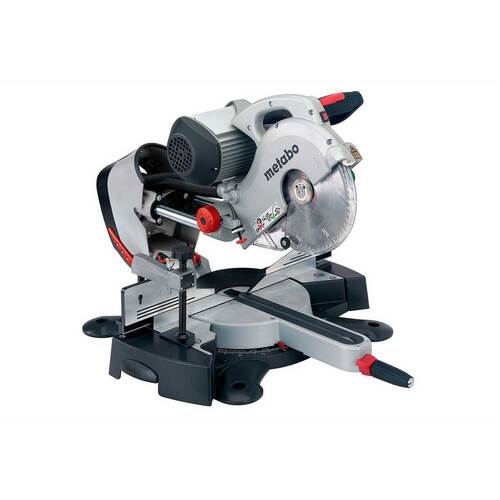

Metabo KGS 254 I Plus Sliding Compound Mitre Saw With Induction Motor

  • Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides
  • Speed control for extended range of application, e.g. for cutting of aluminium profiles and plastics
  • Large cutting capacity thanks to sliding function for wide work pieces
  • Easy transport thanks to ergonomically-designed handles and saw head lock
  • Superb dust extraction capability thanks to a dual extraction port design aligned closely to the work piece.
  • Vario-Constamatic (VC)-Full wave electronics for working at customised speeds to suit the application materials, and speeds that remain almost constant even under load
  • Metabo Quick for changing saw blades without tools
  • Soft start for long service life of motor and drive
  • Fast and precise setting of common angles using stop points
  • Sliding high rear fence profiles for safe sawing
  • Quick-action clamp for secure fixing of the work piece from the top or front
  • Integrated, pull-out table width extensions made from die-cast aluminium
  • Depth guide for easy creation of grooves
  • All scales and operating elements are visible from the working position and can be operated intuitively

Includes

  • Carbide saw blade (60 teeth)
  • 2 Table length extensions
  • Material clamp
  • Adapter 35/58 mm

Technical Data

  • Maximum cutting width 90°/45°: 305 / 214 mm // 12 / 8 7/16 "
  • Maximum cutting depth at 90°/45°: 90 / 54 mm // 3 9/16 / 2 1/8 "
  • Rated input power: 1600 W
  • Rated input power S1 100%: 1600 W
  • Rated input power S6 20%: 1800 W

Characteristics

Dimensions 930 x 690 x 590 mm // 3.1 x 2.3 x 2 ft
Support surface 1000 x 505 x 365 mm
Maximum cutting width 90°/45° 305 / 214 mm // 12 / 8 7/16 "
Maximum cutting depth at 90°/45° 90 / 54 mm // 3 9/16 / 2 1/8 "
Cutting capacity 90°/90° 305 x 90 mm // 12 x 3 9/16 "
Cutting capacity 45°/45° 214 x 54 mm // 8 7/16 x 2 1/8 "
Turntable setting left/right 47 / 60 °
Saw blade tilt left/right 46 / 22.5 °
Saw blade 254 x 30 mm // 10 x 1.181 "
Rated input power 1600 W
Rated input power S1 100% 1600 W
Rated input power S6 20% 1800 W
No-load speed 4650 rpm
Revolutions at rated load 4650 rpm
Cutting speed 62 m/s // 203 ft/s
Weight 37.4 kg / 82.5 lbs
Cable length 2.2 m / 7 ft



Noise Emission

Sound pressure level 86 dB(A)
Sound power level (LwA) 95 dB(A))
Uncertainty of measurement K 3 dB(A)

Specifications

  • AIMS SKU A0175110
  • Brand Metabo
  • Model Number 102540200
  • Barcode Number 4003665505619
  • Type Mitre Saw
SKU: A0175110

Metabo 1800W 254 x 30mm Sliding Compound Mitre Saw With Induction Motor 102540200

Metabo KGS 254 I Plus Mitre Saw - 102540200

$1,539.34
