Description

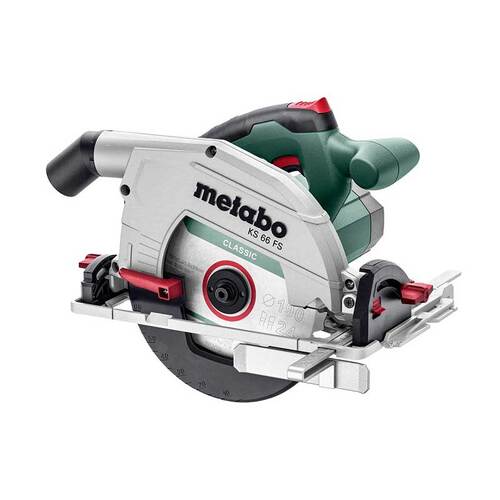

Metabo Circular Saw - KS 66 FS (601066000)

Robust circular saw, can be used directly on guide rails from Metabo and also Mafell, Bosch, Festool, Makita, HiKOKI, Hilti, and other manufacturers.
Fast, precise crosscuts thanks to easy coupling with a Metabo cross-cutting rail.
Light guide plate made from die-cast aluminium.
Grip area with the non-slip soft-grip surface.
Clearly visible cutting indicator for precise sawing after the initial cut.
0° position re-adjustable for highest cutting precision.
Extraction possibility by means of connecting an all-purpose vacuum cleaner.
The sawdust ejection nozzle for any working position can be rotated and locked individually.
Precision guide rail available as an accessory.

Note

The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to the content and product description.
Accessories are included only if listed in the contents.

Contents

Technical Data

Characteristics

Rated input power	1500 W
Output power	840 W
Maximum cutting depth at 90°	66 mm / 2 5/8 "
Maximum cutting depth at 45°	47 mm / 1 7/8 "
Max. cutting depth with guide rail	61 mm / 2 13/32 "
Saw blade Ø x bore	190 x 30 mm // 7 1/2 x 1 3/16 "
Swivel range from / to:	‌ 0 / + 47 °
No-load speed	5000 rpm
Revolutions at rated load	3800 rpm
Max. cutting speed	50 m/s
Weight (without power cable)	4.9 kg / 10.8 lbs
Cable length	4 m / 13 ft
