Description

Mackay Recessed Flange Isolator Type 31

  • Designed for high load capacity combined with relatively large static deflections in an axial direction. Their high loading for a given size is obtained by utilising the rubber to the best advantage in both compression and shear.

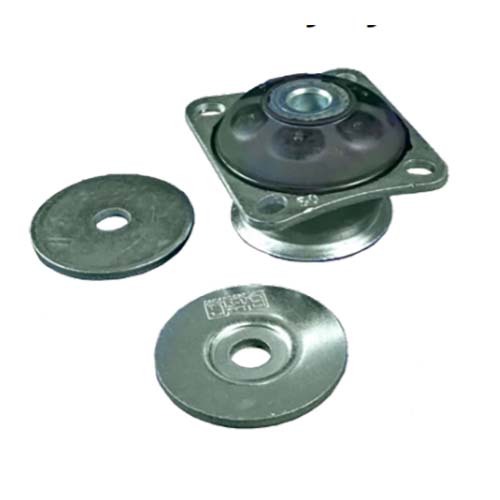

  • Supplied with overload and rebound washers.
  • Normally assembled with overload and rebound washers to control and limit the movement of the suspended equipment under the action of shock loads. The central fixing bolts should be torque tightened to the recommended values.

Specifications

  • AIMS SKU A0166483
  • Brand Mackay
  • Model Number M137063
  • Barcode Number 9313699023733
  • Weight (kg) 1.18

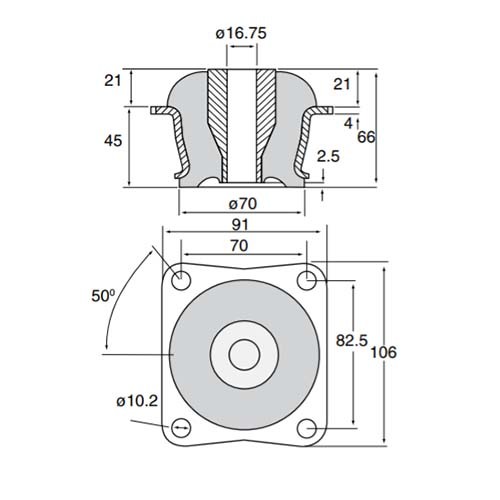

  • Hole Diameter 10.2
  • Durometer 50
  • Width 91
  • Length in (mm) 106
  • Height Size (mm) 66
  • Centre Hole Diameter 16.75
  • Load (kg) 310
  • Deflection (mm) 6.5
SKU: A0166483

Mackay M137063 Recessed Flange Isolator Type 31 - 310kg Load

Mackay Recessed Flange Isolator Type 31

$244.60
