Mackay Recessed Flange Isolator

• M70675 is a one piece recessed flange Isolator that provides a low profile method of supporting a range of equipment.
• Fail safe feature protects supported equipment under shock loads.

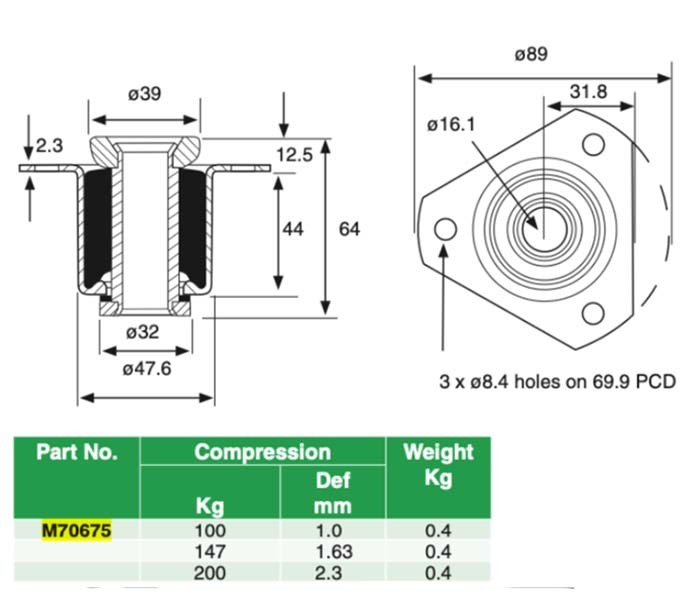

Dimensions

• Height (mm): 64
• Diameter (mm): 47.6
• Center Hole Diameter (mm): 16.1
• Hole Diameter (mm): 8.4
• Weight (kg): 0.4
• Plate Thickness (mm): 2.3
• Compression Load (kg): 100- 200
• Compression Deflection (mm): 1 - 2.3
