Specifications

AIMS SKU A0171063
Brand Mackay
Model Number M412500
Barcode Number 9313699028752
Thread Size M20 x 2.5mm
Weight (kg) 2.5
Compression load (kg) 1200 - 2500

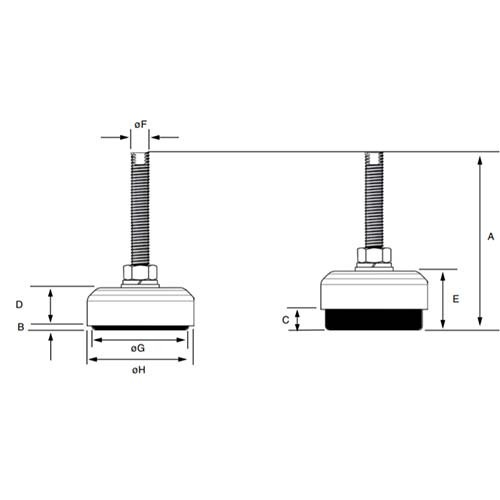

Overall Height in (mm) 177
Exposed Base Min (mm) 11.9
Exposed Base Max (mm) 32
Adjustment Min (mm) 61.9
Adjustment Max (mm) 82
Base Diameter (mm) 135
Cap Diameter (mm) 144
Deflection At Exposed Base (mm) 3 - 6.3

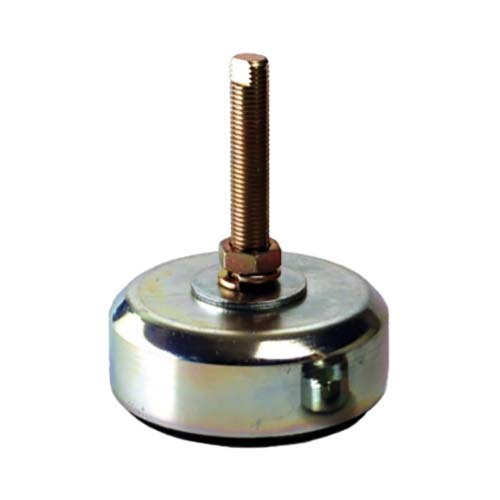

• Type Sure Foot Levelling Isolator
• Material Nitrile Rubber/304 Stainless Steel
