Mackay Surefoot Levelling Isolator

Description

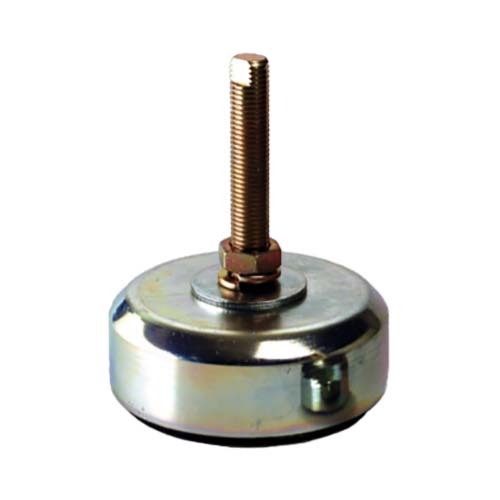

Mackay Surefoot Levelling Isolator

Mackay Sure Foot Levelling Isolators are designed for cost-effective machine levelling for Isolator loads up to 6000Kg.
Offer an effective and durable method for isolating free standing equipment and machinery on non-level surfaces.
Sure Foot standard range is made with electrolytically plated zinc applied to automotive standards. Where superior corrosion resistance is required, it is recommended to use the Sure Foot stainless Steel alternative.
Made using Nitrile rubber, Sure Foot offers superior chemical and oil resistance in comparison to natural rubber.

Specifications

AIMS SKU A0166922

Brand Mackay

Model Number M400300

Barcode Number 9313699024501

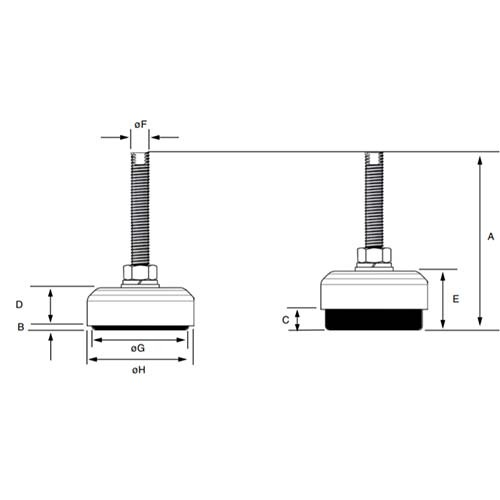

Thread Size M12 x 1.75 mm

Cap Diameter (mm) 71

Adjustment Min (mm) 31.7.

Overall Height in (mm) 119

Base Diameter (mm) 64

Exposed Base Max (mm) 15

Compression load (kg) 30 - 300

Deflection At Exposed Base (mm) 0.2 - 2.3

Adjustment Max (mm) 40

Exposed Base Min (mm) 6.7

Weight (kg) 0.4

Type Sure Foot Levelling Isolator
Material Nitrile Rubber/Plated Zinc
