Mackay M18770 Dual Compression Mobile Isolator Marked 70 Load 500kg

Description

***Isolator Red Load 200kg has a lead time 4 Weeks. Contact AIMS for assistance***

***M189 sold separately. Contact AIMS for assistance***

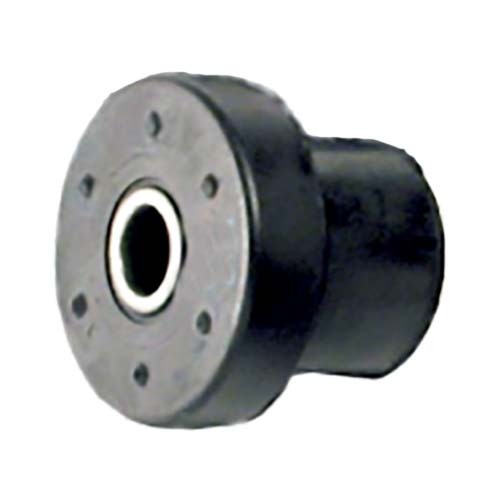

Mackay Dual Compression Mobile Isolator

Engineered to isolate vibration, control shock, and reduce noise due to structure borne vibrations.
High load carrying capacity with improved multi-directional resilience and built in rebound protection.
The isolators give versatility for protecting the equipment and improving operator comfort for all types of cabins and vehicles.

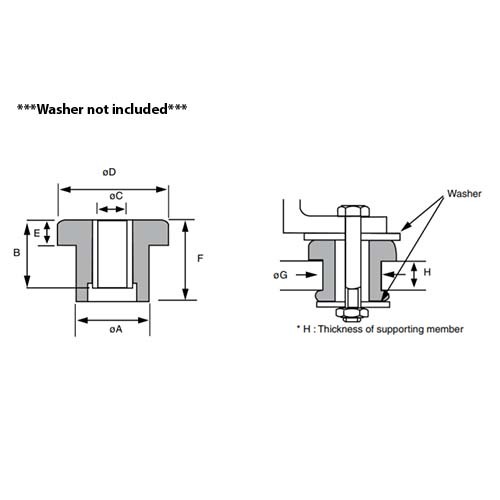

Their engineered design balances stability with resilience to withstand high static and shock loading as well as providing fail safe assembly when installed with suitable washers. Washers not included.

Also available: M189 Mechanical and chemical protection shield. A shield to protect isolators from mechanical and chemical attacks. Sold separately. Contact AIMS for assistance.

Specifications

AIMS SKU A0166957

Brand Mackay

Model Number M18770

Barcode Number 9313699028622

Colour Marked 70

Weight (kg) 0.2

Hole Diameter 13

Durometer 70

Head Diameter (mm) 63

Height Size (mm) 51

Deflection (mm) 2.3

Base Diameter (mm) 41

Static Load 500

Head Thickness 22

Supporting Member Diameter (mm) 41

Supporting Member Thickness (mm) 16

Type Dual Compression Mobile Isolator

Calculate Shipping

Resources

Mackay Industrial Rubber Technology Catalogue
