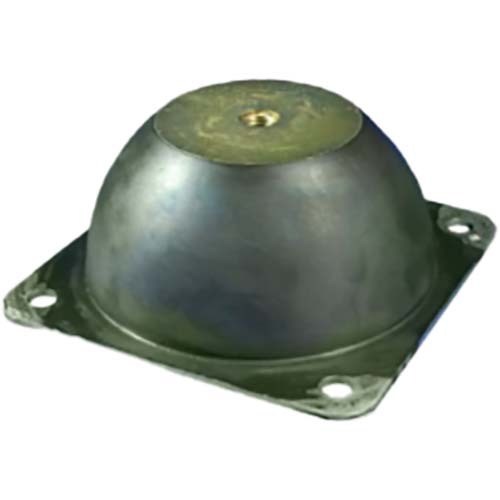

Mackay4-Hole Hy-Deflection Dome Mount

These mounts offer great elasticity in the radial and axial directions.

  • The metal parts are electrolytically coated to protect against corrosion.
  • The rubber hardness is engraved on the metal parts

Applications:

  • Compressors
  • Air-conditioners
  • Ventilators
  • Vibrating Tables

Specifications

  • AIMS SKU A0166416
  • Brand Mackay
  • Model Number M175036
  • Barcode Number 9313699024976
  • Thread Size M16
  • Weight (kg) 2.39
  • Hole Diameter 14.5 mm

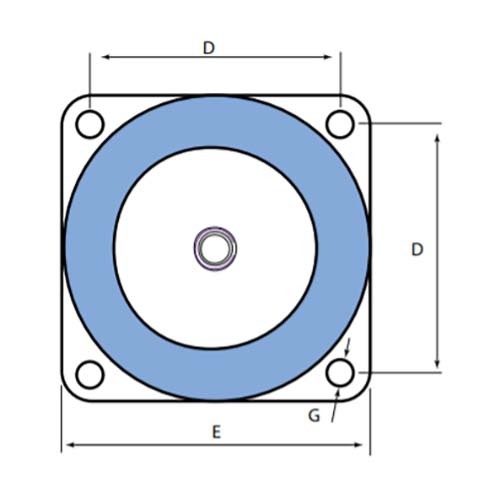

  • Head Diameter (mm) 93
  • Length in (mm) 200
  • Height Size (mm) 85 mm
  • Centre To Centre 160 mm
  • Plate Thickness (mm) 4
  • Load (kg) 380
  • Deflection (mm) 18
SKU: A0166416

Mackay M175036 4-Hole Hy-Deflection Dome Mount 380kg Load

Mackay 4-Hole Hy-Deflection Dome Mount

$1,299.14
