***Dust/Oil Seal Shield M189 sold separately. Contact AIMS for assistance***

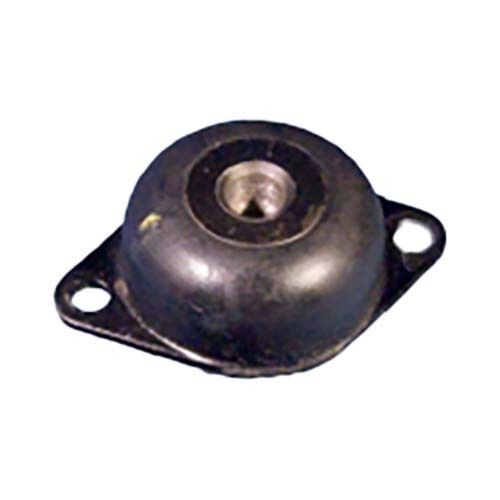

Mackay Flange Isolator M114

  • These special light duty isolators were developed to meet almost every type of machinery installation within the loading range, with telescopic metal inserts providing considerable stability in all directions.
  • Equipped with upper metal inserts, tapped to receive standard bolts or set screws.
  • The isolators can be fastened to the floor or other base.
  • Shield available (Part No. M189) to protect isolators from mechanical and chemical attacks. Sold separately, contact AIMS for assistance.

Specifications

  • AIMS SKU A0166361
  • Brand Mackay
  • Model Number M11460
  • Barcode Number 9313699022699
  • Thread Size 1/2 inch - 20 UNF
  • Weight (kg) 0.2
  • Hole Diameter 8.7 mm
  • Durometer 60
  • Width 60 mm
  • Length in (mm) 92
  • Height Size (mm) 29
  • Centre Hole Diameter 57 mm
  • Centre To Centre 76.1 mm
  • Plate Thickness (mm) 3
  • Compression Load 90 - 130 kg
  • Compression Deflection (mm) 2.4 - 3.5
  • Shear Load (kg) 60 - 80
  • Shear Deflection (mm) 2.6 - 3.4
SKU: A0166361

Mackay M11460 Light Duty Flange Isolator 92 x 60 x 29mm - 90 to 130kg

Mackay Light Duty Flange Isolator

$52.44
