Description

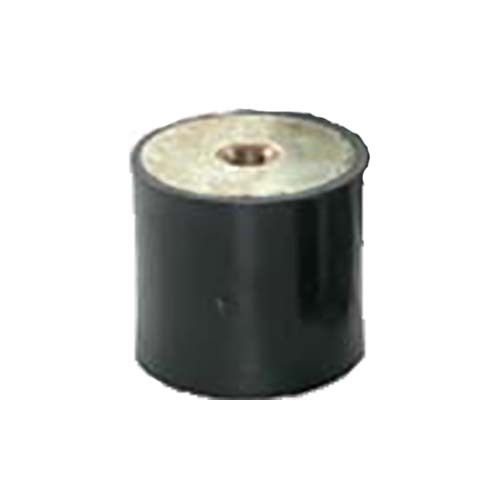

Mackay Multicushion Isolator Stainless Steel

  • Stainless Steel Multicushion isolators are manufactured in the most popular sizes from high-grade natural rubber and stainless steel (type 304) metal components.
  • Available in two rubber hardnesses (Duro), the cushions are supplied without fixing studs. Recommends fixing with appropriate stainless steel hexagonal socket set screws used with an appropriate locking compound.

Note! Multicushions are not recommended for use under permanent tension loading. Ensure load is applied to the full face and not just on the thread.

Specifications

  • AIMS SKU A0166301
  • Brand Mackay
  • Model Number M11403040
  • Barcode Number 9313699022026
  • Diameter x Height (mm) 40 x 30
  • Thread Size M8
  • Weight (kg) 0.09
  • Duro 40
  • Compression Max Load (kg) 40.5
  • Compression Max Deflection (mm) 4
  • Shear Maximum Load (kg) 17.5
  • Shear Maximum Deflection 5
SKU: A0166301 On Sale

Mackay M11403040 Multicushion Isolator Stainless Steel M8 - 40 x 30mm 40 Duro

Mackay Multicushion Isolator Stainless Steel

$69.38
$78.84
