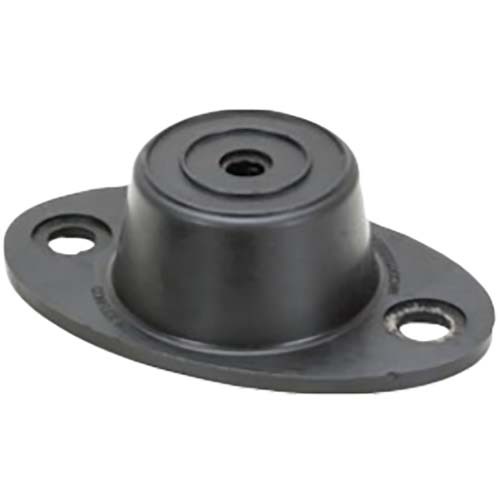

Mackay Conflex Isolator Neopre Rubber

  • Conflex isolators are designed to meet almost all machinery installations within the load range.
  • Available in three neoprene rubber hardnesses they are the versatile answer to your mobile or static vibration problems.
  • Rubber base for anti-skid when used without bolting base to the floor.

Specifications

  • AIMS SKU A0166974
  • Brand Mackay
  • Model Number M111265NM12-GRY
  • Barcode Number 9313699022491
  • Thread Size M12
  • Weight (kg) 0.15

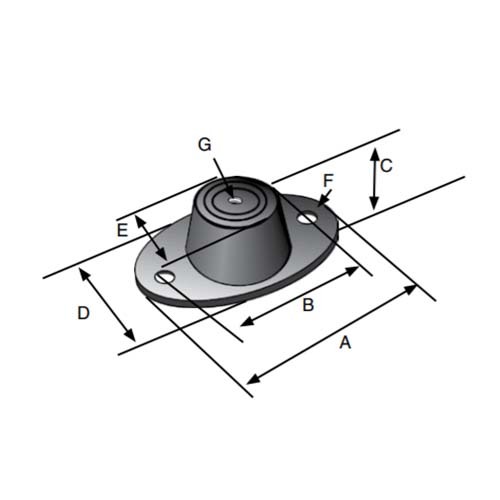

  • Hole Diameter 8.5
  • Durometer 65
  • Head Diameter (mm) 46
  • Width 60
  • Length in (mm) 100
  • Height Size (mm) 32
  • Centre To Centre 76
  • Compression Max Load 250
  • Shear Load (kg) 65
  • Shear Deflection (mm) 6
  • Colour Code Grey
  • Deflection at Max Load (mm) 6
  • Tightening Torques (nm) 15
  • Type Conflex Isolator
  • Material Neoprene Rubber
SKU: A0166974

Mackay M111265NM12-GRY Conflex Isolator Neoprene Rubber 100 x 60 x 32mm Load 250kg

Mackay Conflex Isolator Neopre Rubber

$30.95
