Specifications

AIMS SKU A0166973
Brand Mackay
Model Number M111255NM12-GRN
Barcode Number 9313699022484
Thread Size M12
Weight (kg) 0.15
Hole Diameter 8.5
Durometer 55
Head Diameter (mm) 46
Width 60
Length in (mm) 100
Height Size (mm) 32
Centre To Centre 76
Compression Max Load 160
Shear Load (kg) 40
Shear Deflection (mm) 6
Colour Code Green
Deflection at Max Load (mm) 6
Tightening Torques (nm) 15

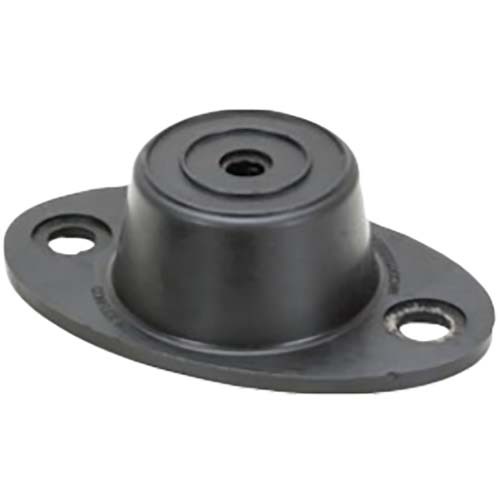

• Type Conflex Isolator
• Material Neoprene Rubber
