Description

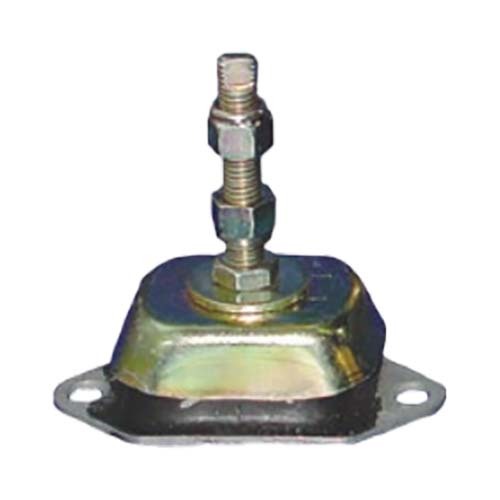

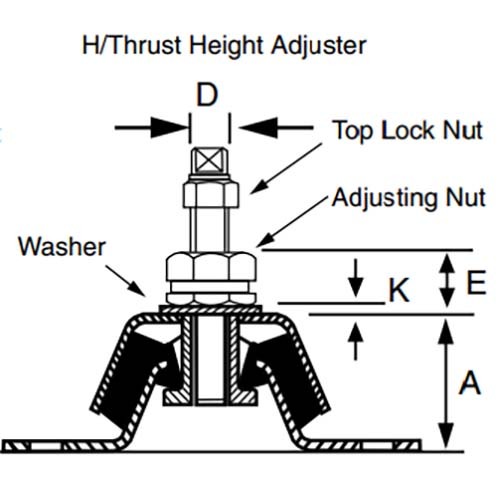

Mackay Isomount With High Thrust Height Adjuster

Isomounts are general-purpose vibration isolators suitable for mobile and static equipment installations.
Suitable for Marine applications.
Isomounts have a mechanically galvanized base and come with a choice of rubber hardnesses, they can also be supplied with two types of specialist height adjusters and a mechanically galvanised base.
Isomount isolators are suitable for operation under all types of engines.
They offer 3-way control of engine movement with excellent isolation efficiency. Maximum use of this 3-way control when the isomount isolators are used as engine supports can be obtained by arranging the isolator with their maximum flexibility (Y) at right angles to the engine crankshaft and maximum stiffness (X) in line with the crankshaft. Using the isolators in this manner also has the advantage in marine applications of providing isolation against propeller thrust.
The Isomount range also features bump and rebound control which prevents excessive movement under shock loads.

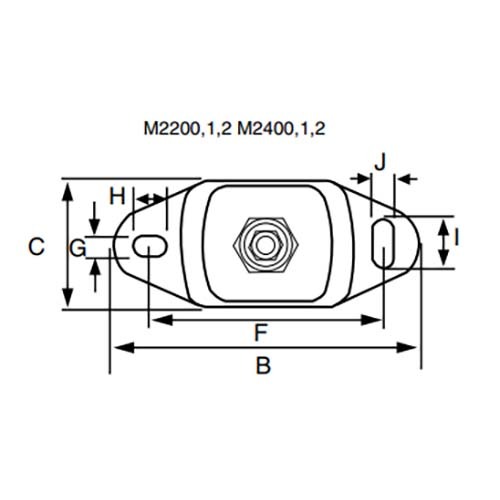

Available in three different sizes.

Note: When used in marine engine applications with thrust forces, the maximum load capacity is substantially reduced.
