Description

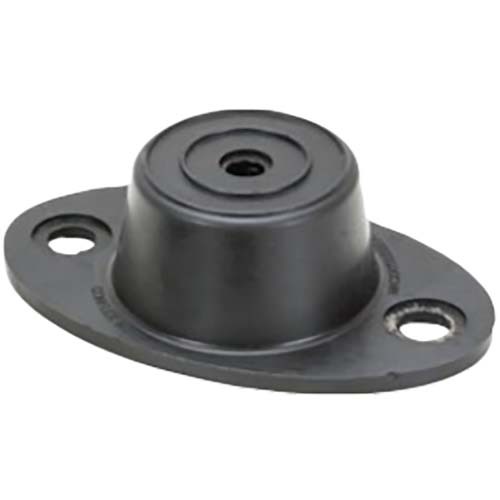

Mackay Conflex Isolator

  • Conflex isolators are designed to meet almost all machinery installations within the load range.
  • Available in four rubber hardnesses they are the versatile answer to your mobile or static vibration problems.
  • Rubber base for anti-skid when used without bolting base to the floor.

Specifications

  • AIMS SKU A0166965
  • Brand Mackay
  • Model Number M111245
  • Barcode Number 9313699021777
  • Thread Size M10
  • Tightening Torques (nm) 15
  • Shear Deflection (mm) 6

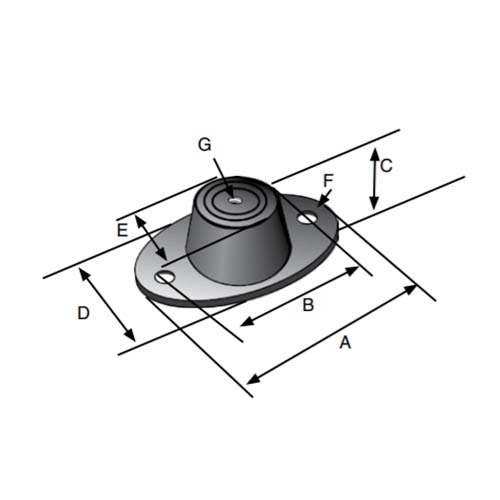

  • Centre To Centre 76
  • Width 60
  • Hole Diameter 8.5
  • Deflection at Max Load (mm) 6
  • Shear Load (kg) 25
  • Height Size (mm) 32
  • Head Diameter (mm) 46
  • Weight (kg) 0.15
  • Colour Code Red
  • Compression Max Load 110
  • Length in (mm) 100
  • Durometer 45
  • Type Conflex Isolator
  • Material Rubber
SKU: A0166965

Mackay M111245 Conflex Isolator 100 x 60 x 32mm Load 110kg

Mackay Conflex Isolator

$21.76
