Specifications
- AIMS SKU A0134164
- Length (mm) 160
- Pitch (mm) 4
- Size M36
- Stress Area (mm²) 817
- Thread (mm) 84
- Minimum Tensile Stress (mpa Or N/mm²) 1040
- Minimum Stress Under Proof Load (mpa Or N/mm²) 830
- Minimum Proof Load (kn) 678.1
- Minimum Ultimate Tensile Load (kn) 849.7

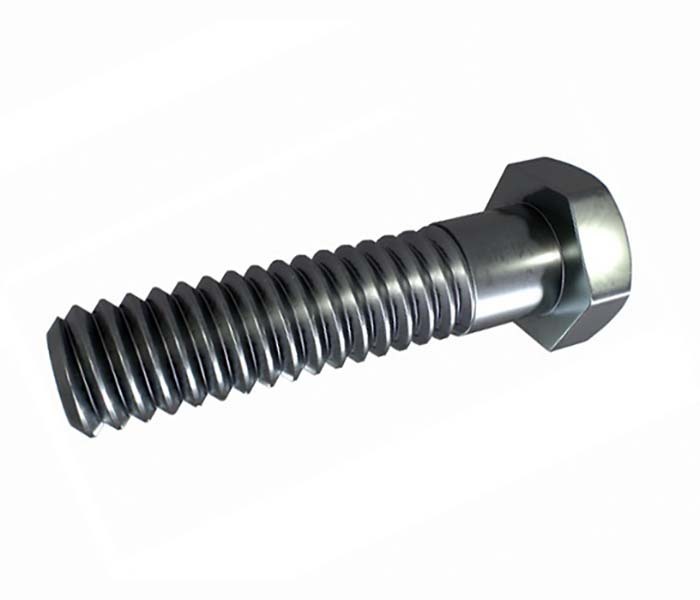

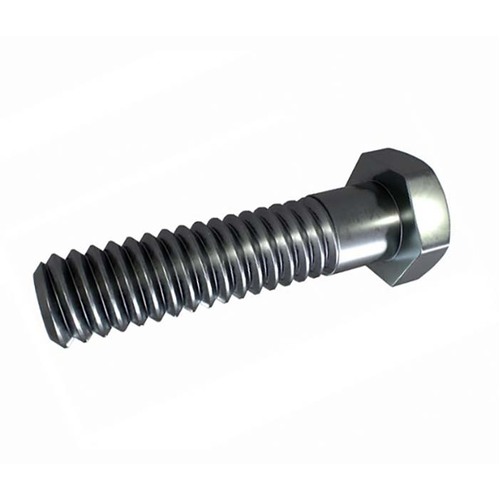

- Type Metric Hex Bolt
- System of Measurement Metric
- Material High Tensile Steel
- Finish Plain
- Class 10.9
