Specifications
- AIMS SKU A0134085
- Length (mm) 200
- Pitch (mm) 2.5
- Size M22
- Stress Area (mm²) 303
- Thread (mm) 56
- Minimum Tensile Stress (mpa Or N/mm²) 1040
- Minimum Stress Under Proof Load (mpa Or N/mm²) 830
- Minimum Proof Load (kn) 251.5
- Minimum Ultimate Tensile Load (kn) 315.1

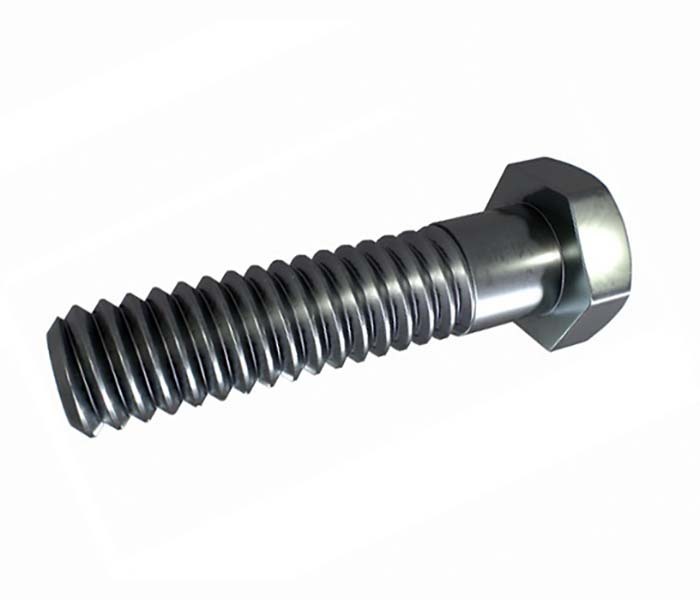

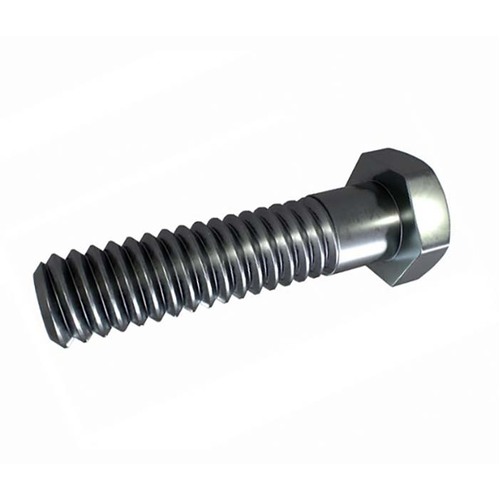

- Type Metric Hex Bolt
- System of Measurement Metric
- Material High Tensile Steel
- Finish Plain
- Class 10.9
