Specifications
- AIMS SKU A0134069
- Length (mm) 170
- Pitch (mm) 2.5
- Size M20
- Stress Area (mm²) 245
- Minimum Tensile Stress (mpa Or N/mm²) 1040
- Minimum Stress Under Proof Load (mpa Or N/mm²) 830
- Minimum Proof Load (kn) 203.3
- Minimum Ultimate Tensile Load (kn) 254.8

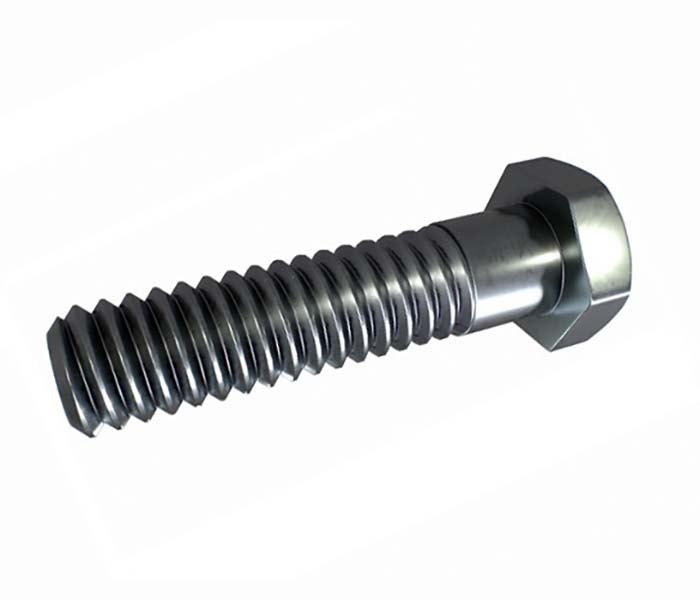

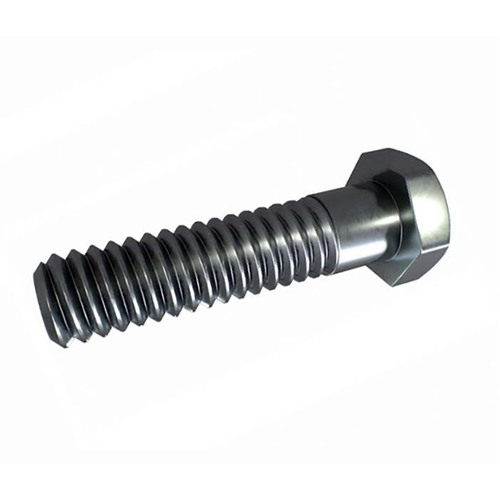

- Type Metric Hex Bolt
- System of Measurement Metric
- Material High Tensile Steel
- Finish Plain
- Class 10.9
