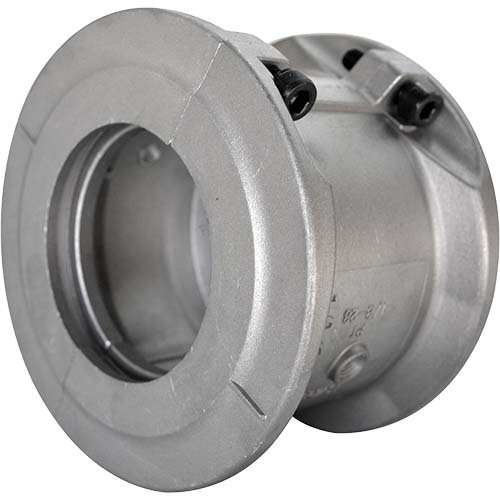

Horizontal Split Aluminum Cover Taper Grid Coupling
- Type H cover, horizontal split aluminum cover.
- Best choice for limited spaces.
- Allows easy access to the grid spring.
- Suitable for reversing applications.
- Lightweight, die-cast aluminum grid cover.
*** Cover Only ****
About KCP Taper Grid Coupling
- Taper Grid Couplings are recognizable due to their unique steel flexible grid running through the tapered hubs.
- The benefits of the Grid Coupling are reduced vibration and shock loads.
- The compact size of shaft-to-shaft couplings.
- Handle torque capacity due to high strength hardened alloy steel construction
- Deflect torsionally for normal shock or vibratory loads.
- Capacity for misalignment without producing the detrimental side loads.
- Designed with a trapezoidal cross-section and tempered for spring hardness.
- Increase in strength rating and provide reserve strength for a longer part life.
- Easy to fit the trapezoidal grids into the slots of the hub and short time of installation.
- Free to rock, pivot, and float.
- AIMS SKU A0148846
- Brand KCP
- Model Number 1060H-CA
- Size 1060H
- Gap Max (mm) 4.5
- Dimension E (mm) 92
- Bore Diameter Min (mm) 19
- Hp Per 100 rpm 8.85
- Dimension B (mm) 130
- Lube Wt (kg) 0.09
- Gap Normal (mm) 3
- Dimension D (mm) 76.2
- Bore Diameter Max (mm) 55
- Cover Profile Horizontal
- Dimension A (mm) 150.5
- Cplg Wt (kg) 7.3
- Gap Min (mm) 1.5
- Dimension C (mm) 63.5
- Basic Torque (kg-cm) 6337
- Max. Speed (rpm) 4350
- Type Cover Taper Grid Coupling
