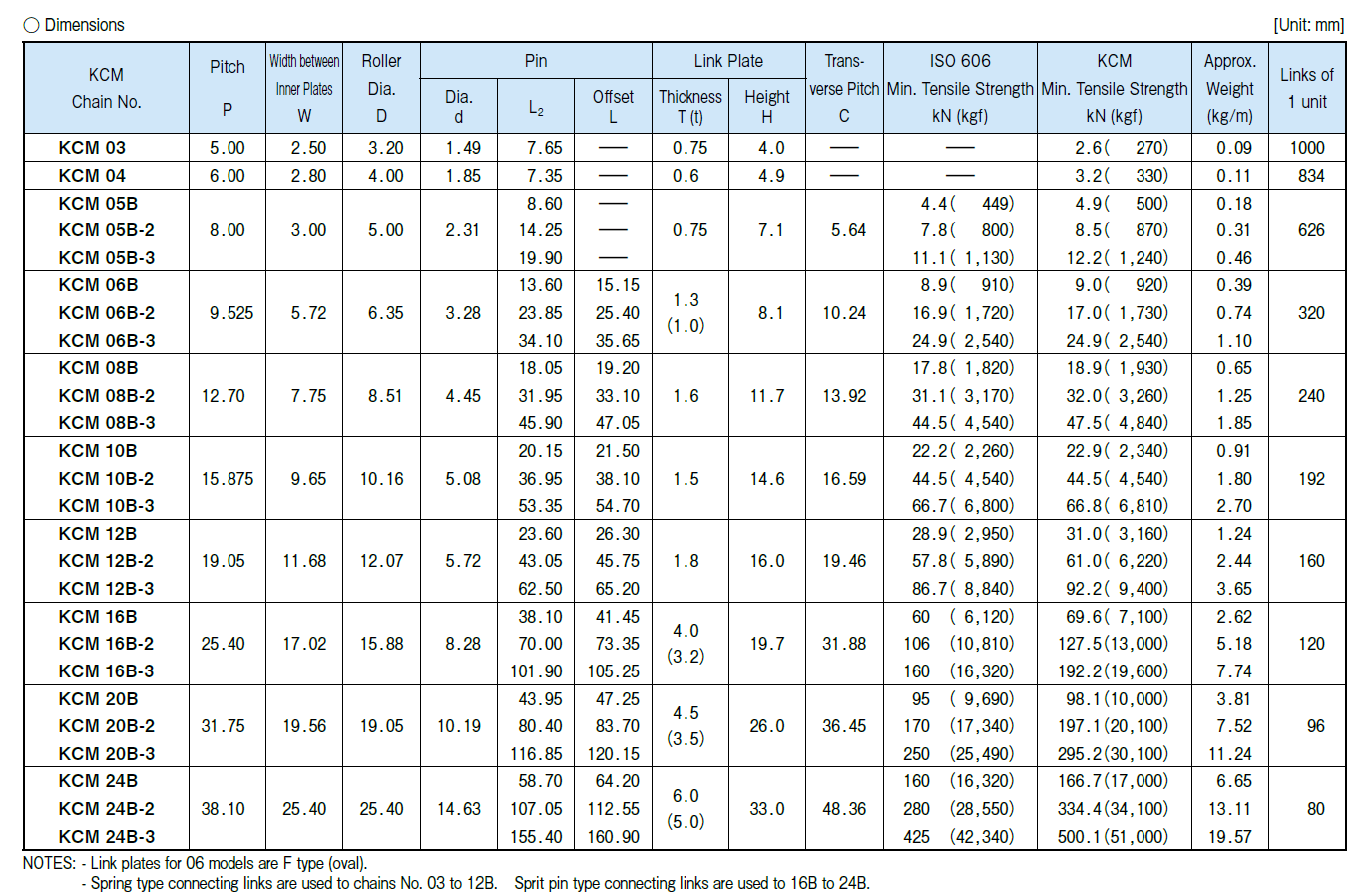

Specifications

AIMS SKU A0067261
Brand KCM
Model Number 20B-1/KCM
Chain Number 20

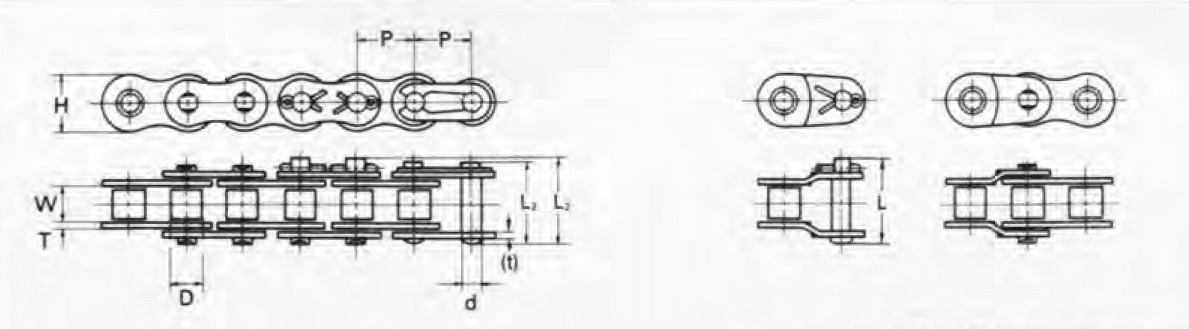

Pitch (inch) 1 1/4
Pitch (P) 31.75 mm
Width Between Inner Plates (W) 19.56 mm
Roller Diameter (D) 19.05 mm
Pin Diameter (D) 10.19 mm
Link Plate Thickness (T) 4.5 mm
Link Plate Height (H) 26 mm
Chain Strands 1 Simplex
Number of Chain Links 96
Pin L 43.95 mm
Pin Offset (l) 47.25 mm
Transverse Pitch (C) 36.45 mm
ISO 606 Minimum Tensile Strength, kN (kgf) 95 kN (9,690 kgf)
KCM Minimum Tensile Strength, kN (kgf) 98.1 kN (10,000 kgf)
Approximate Weight (kg/m) 3.81 kg/m
• System of Measurement British (BS)
• Material Steel
• Strand Simplex
