Description

Self Aligning Bearing 2RS (with Seals)

  • 2RS (with seals).

All About Self-Aligning Ball Bearings

  • Self-aligning ball bearings have functions to accommodate angular misalignment of the shaft, which can be caused by errors in mounting or shaft deflection.

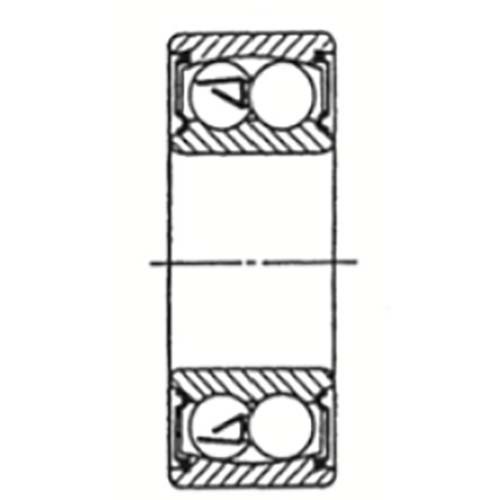

  • Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring.
  • They are available open or sealed.
  • These bearings are insensitive to angular misalignment of the shaft relative to the housing.
  • Self-aligning ball bearings are consequently moveable angularly and insensitive to angular misalignments of the shaft relative to the housing.
  • They are therefore particularly suitable for bearing situations in which large shaft deflections or alignment errors can be expected.
  • Self-aligning ball bearings also have the lowest friction of any rolling-contact bearings.
  • This allows them to run somewhat more quietly and cooler even at higher speeds.

Specifications

  • AIMS SKU A0156779
  • Brand JAF
  • Model Number 2206-2RS/JAF
  • Bore Diameter (mm) 30
  • Width (mm) 20
  • Load Rating (kgf) Cor 475
  • Outer Diameter (mm) 62
  • Load Rating (kgf) Cr 1560
  • Limiting Speed (r.p.m) 6400
  • Type Self Aligning Bearings
  • Series 2200
SKU: A0156779 On Sale

JAF 2206-2RS Self Aligning Bearing 2RS 30 x 62 x 20 mm

Self Aligning Bearing 2RS (with Seals)

$27.94
$55.88
