Specifications
- AIMS SKU A0156823
- Brand FYH
- Model Number UC305/FYH
- Outside Diameter 62 mm

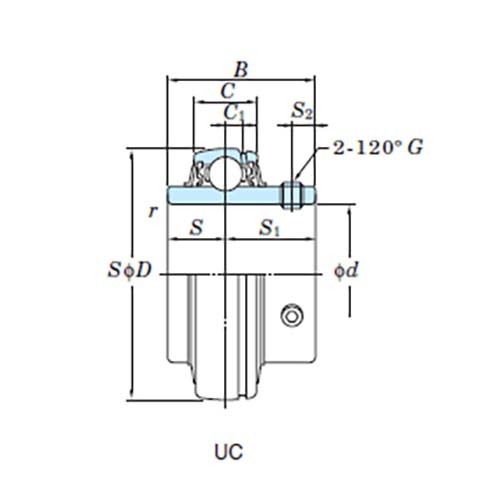

- B (in) 1.496
- Width 38 mm
- S2 (mm) 6
- C1 (mm) 6
- Set Screw Brg. Bore G (mm) M6 x 0.75
- S (in) 0.591
- R Min (in) 0.043
- C (in) 0.866
- D (in) 2.441
- D (mm) 62
- S1 (mm) 23
- C (mm) 22
- S2 (in) 0.236
- Basic Load Rating C0r (kn) 10.9
- R Min (mm) 1.1
- C1 (in) 0.236
- Bore Diameter 25 mm
- b (mm) 38
- S (mm) 15
- Shaft Diameter (mm) 25
- S1 (in) 0.906
- Basic Load Rating Cr (kn) 21.2
- Factor f0 12.6
- Type Ball Bearing
- System of Measurement Metric
- Series UC300
SKU: A0156823

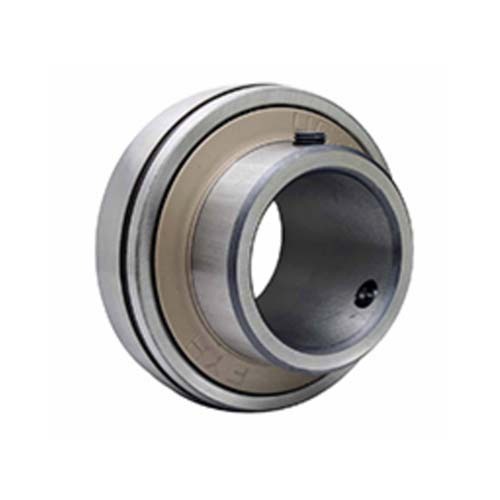

FYH Heavy Wide Inner Ring Bearing UC305 with Grub Screw 25 x 62mm
Heavy Wide Inner Ring Bearing with Grub Screw - Metric
$72.60
