Description

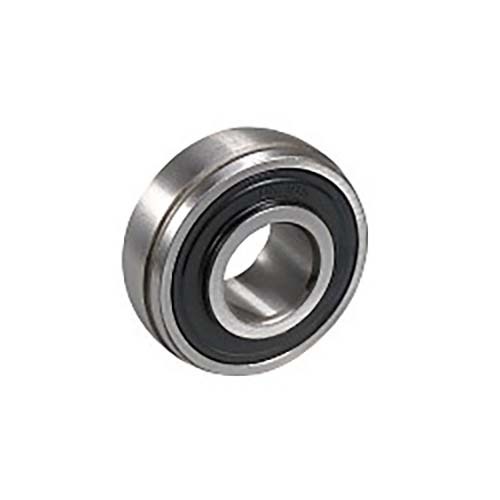

Heavy Wide Inner Ring Bearing Tapered Bore (UK)

  • Ball bearing insert.
  • Tapered bore.

About Wide Inner Ring Bearing

  • Commonly used ball bearings designed for installation into the corresponding wide inner ring housings.
  • This range is well known for its versatility between bearing and housing options as well as ease of installation.
  • Wide inner ring insert bearings also distributes the load over the larger surface area created by the wider inner ring.
  • These bearings are generally used for heavier duty applications.

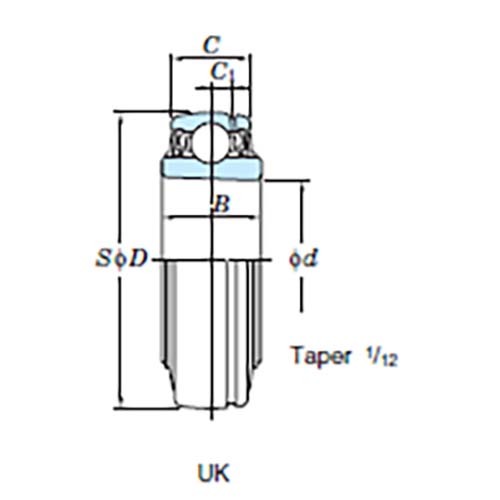

Specifications

  • AIMS SKU A0156895
  • Brand FYH
  • Model Number UK305/FYH
  • Outside Diameter 62 mm
  • C (in) 0.866
  • D (in) 2.441
  • Width 27 mm
  • C1 (mm) 6
  • Basic Load Rating C0r (kn) 10.9
  • C1 (in) 0.236
  • Bore Diameter 25 mm
  • D (mm) 62
  • C (mm) 22
  • Basic Load Rating Cr (kn) 21.2
  • B (in) 1.063
  • Shaft Diameter (in) 3/4
  • b (mm) 27
  • Shaft Diameter (mm) 20
  • Factor F 0 12.6
  • Type Ball Bearing
  • Series UK300
SKU: A0156895

FYH Heavy Wide Inner Ring Bearing UK305 Tapered Bore 25 x 62 x 27mm

Heavy Wide Inner Ring Bearing Tapered Bore (UK)
