Description

Descriptions

  • Quad-Power® 4 has been developed to replace traditional V-belts on applications where space, weight savings and temperature resistance are required.
  • Extensive testing has shown that Gates Quad-Power® 4 V-belts offer up to 50% higher power ratings than the wrapped Super HC®.
  • The new upgraded EPDM compound allows the belt to handle extreme temperatures up to +130°C.

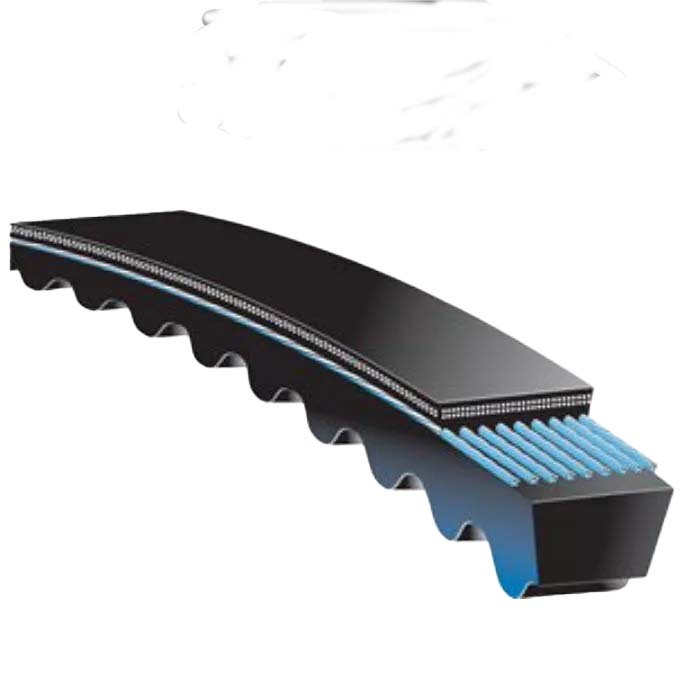

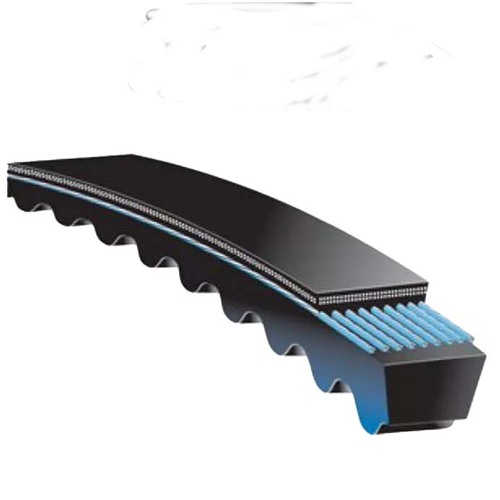

Construction

  • Notch depth is in proportion to the cross-section to ensure perfect stability
  • Precision-ground sidewalls reduce centre distance variations, vibration and uniform wedging action
  • Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
  • Fibre-loaded EPDM compound withstands high heat, ozone, sunlight and provides better cord support
  • Enhanced blue adhesion layer increases tensile cord bond
  • Double Flex-Weave® textile backing protects the belt against wear – especially when back idlers are used
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
  • Static conductive - ISO 1813 and RMA IP3-3

Advantages

  • No re-tensioning required
  • Reduce wrapped belt drive width up to 50%
  • Increase efficiency up to 3% over wrapped belts
  • Use smaller diameter pulleys than wrapped belts
  • Moulded notches reduce and evenly distributed thermal and bending stresses
  • Reduce drive maintenance
  • Match free system: all sizes meet Gates UNISET & V80® tolerances, can be installed without matching
  • Back idlers can be used

Temperature Range

  • Range: -50°C to +130°C

Specifications

  • AIMS SKU A0019031
  • Brand Gates
  • Model Number 9645-01060
  • Barcode Number 5414465972607
  • V-Belt Code XPB1060/5VX422
  • Length (mm) 1060
  • Length (inch) 42

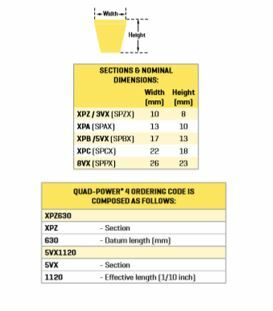

  • Top Width (mm) 17
  • Depth (mm) 13
  • Type Quad-Power Notched Belt - Narrow Section
  • System of Measurement Metric,Imperial
  • Material Flex-Bonded Polyester Cord
  • Section XPB
  • Series Gates QuadPower 4 Notch Belt
SKU: A0019031

Gates XPB1060/5VX422 QuadPower 4 Notch Belt Narrow Section 9645-01060

Gates Quad-Power Notched Belt - Narrow Section

$44.44
RRP $111.10
SAVE $66.66 (60%)
