Description

Descriptions

  • Gates Micro-V® multi-ribbed belts ensure outstanding performance on any industrial multi-ribbed drive
  • They cover a multitude of industrial applications and are suitable also for industrial drives in washing machines, vacuum cleaners, lawn mowers, machine tools, medical equipment and many more
  • The full line of Micro-V® belt products include sleeves in several widths as well as single belts in PJ, PL and PM sections in order to perfectly match customer requirements

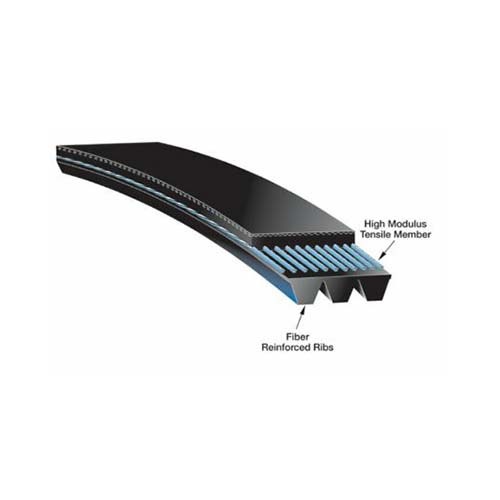

Construction

  • Truncated ribs (tips removed) ensure flexibility, reduce heat build-up and improve rib crack resistance. They also enhance load-carrying capacity on small diameter pulleys
  • Fibre-loaded compound for improved belt stability
  • Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
  • Static conductive - ISO 1813 and RMA IP3-3

Advantages

  • Extremely smooth and cool running
  • Very high power capacity per rib
  • Long life due to extra load-carrying capacity
  • Improved performance on back idlers
  • Smaller drive package
  • Tolerant of pulley groove debris
  • Back idlers can be used.

Temperature Range

  • Range: -35°C to +80°C

Specifications

  • AIMS SKU A0036305
  • Brand Gates
  • Model Number 500L8
  • V-Belt Code 500L8
  • Length (inch) 50
  • Ribs 8
  • Top Width (mm) 37.6
  • Pitch (mm) 4.7
  • Depth (mm) 6.4
  • Type Micro-V Ribbed Belt
  • System of Measurement Imperial
  • Material Polyester Cord
  • Section L
  • Application Heavy-Duty Belt
  • Series Gates Industrial Micro-V Belt
SKU: A0036305

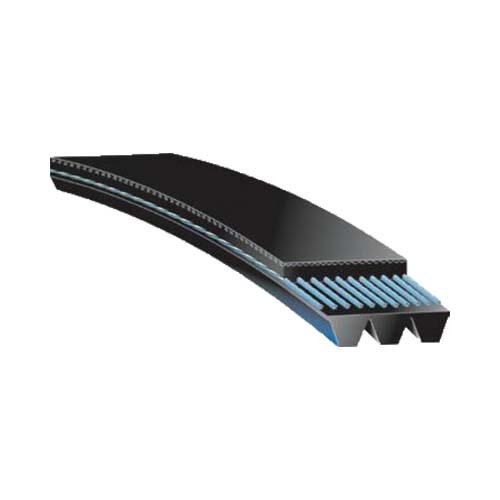

Gates 500L8 Micro-V Belt, 8 Ribs, L Section (500L8)

Gates Micro-V Ribbed Belt

$120.71
RRP $301.77
SAVE $181.06 (60%)
