Descriptions

• Gates Hi-offer® II Dubl-V belt is characterised by a double-V profile. It uses flex-bonded tensile cords, which are highly resistant to flexing forces, and FlexWeave® cover for extended protection.
• It is the ideal solution for “serpentine” drives (drives with counter rotating shafts) where power is transmitted from both the top and bottom of the belt

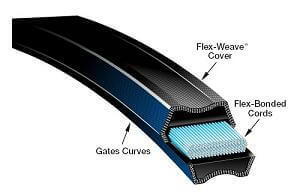

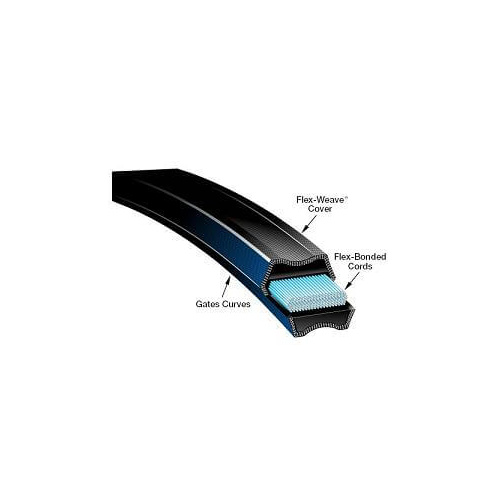

Construction

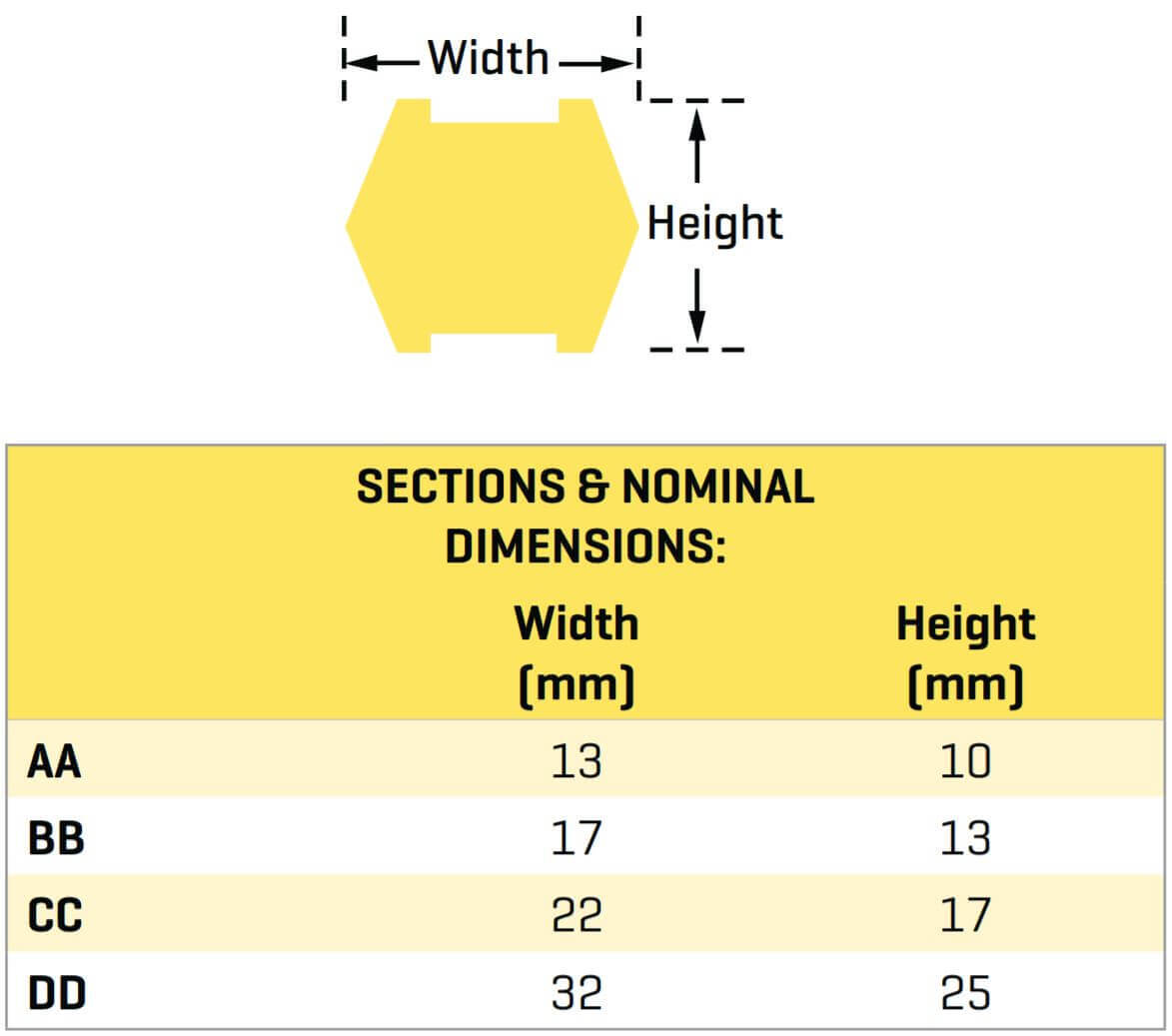

• Classical cross-section
• Unique recessed top and bottom
• Fibre-loaded compound for improved belt stability

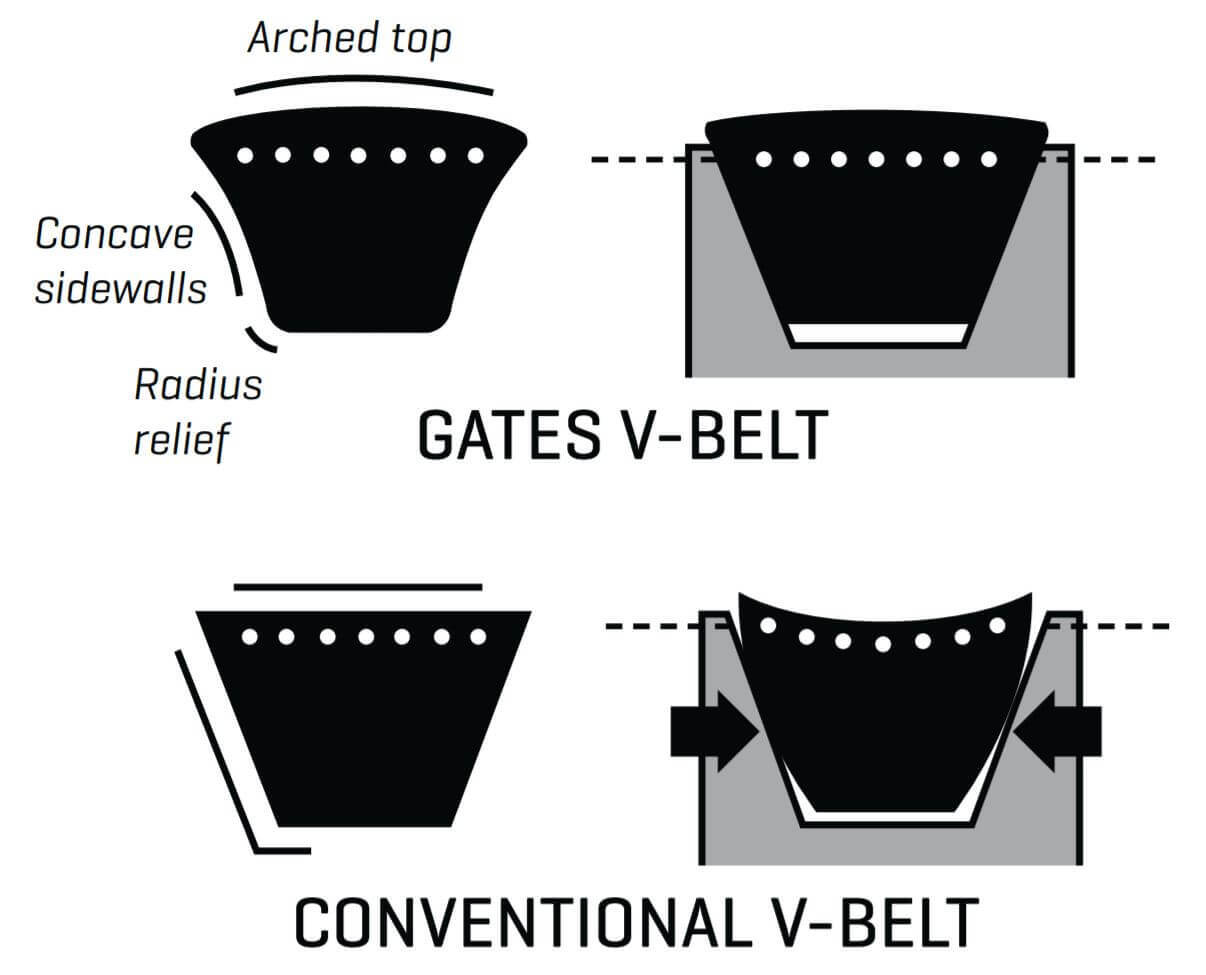

• Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
• Flex-Weave® cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 and RMA IP3-3

Advantages

• Premium performance
• offer transmission from both sides of the belt
• Premium performance
• Excellent performance/cost ratio
• Suitable for dirty/dusty environments
• Match free system: meets Gates V80® tolerances, can be installed without matching
• Tolerates mild clutching or drive slip

Temperature Range

• Range: -35°C to +60°C
