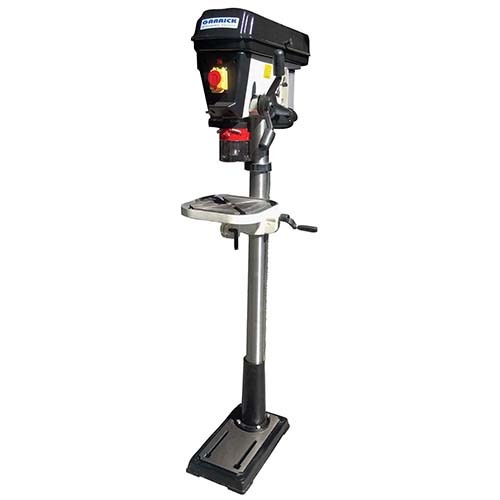

Garrick Herbert DP20 Heavy Duty Pedestal Drill Press - 20mm Capacity

Description

Garrick Heavy Duty Drill Press

Industrial Drill Press
Square tables for larger work area, with ‘T’ slots for solid clamping
Tables tilt and rotate
Solid one piece Cast Iron operating handles
Safety Guard with flip up cover over chuck as standard
Emergency stop switches
Heavy-duty precision depth stops
Quick action, positive motor adjustment for belt tensioning
Rack & pinion table height adjustment
Column & Quill precision machined from thick wall tube for rigidity
Work light under head (bulb not included for transport reasons)
Powerful 240V Aluminium TEFC motors
Includes Drill Chuck & Arbor, Chuck Key and Drill Drift

Also available in Models:

DP20
DP25
DP32

Specifications

AIMS SKU A0127541

Brand Garrick Herbert

Model Number DP20

Barcode Number 9343662001673

Max Capacity (mm) 20

Overall Height (mm) 1600

Motor (w) 550

Chuck Size (mm) 3 - 16

Spindle Travel (mm) 80

Column Diameter (mm) 80

Speed (rpm) 120 to 2580

Max Drilling Capacity (mm) 20

No. of Speeds 12

Quill Diameter 52

Table Dimensions (mm) 290 x 290

Carton Dimensions 1440 x 570 x 290

Weight (kg) - Nett I Gross 82 / 86

Drill Press Swing (mm) 356

Drill Press Spindle Taper MT2

Type Bench Drill Press
Item Type Heavy Duty
Type Of Mounting Pedestal Mounted
