Specifications

AIMS SKU A0104831
Brand FYH
Model Number UK215/FYH

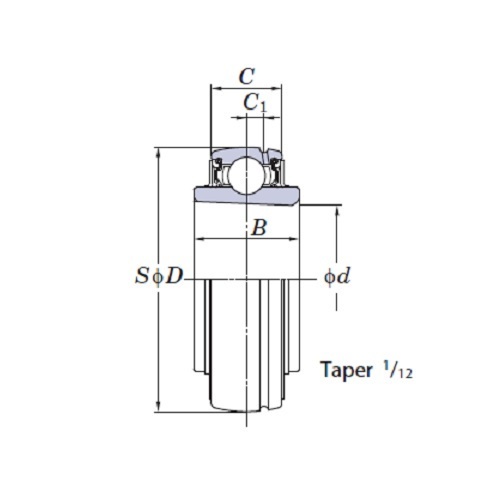

C (mm) 32
C1 (mm) 9
Dynamic Radial Load Rating 67.4:Static Radial load rating:48.3
Factor 14.5
Shaft Diameter (d) mm 65
Nominal Bearing Bore (d1) mm 75
Nominal Bearing Outer (D) mm 130
Nominal Inner Ring Width (B) mm 40
• Type Ball Bearing Inserts
• System of Measurement Metric
• Series UK200
• Item Type Tapered Ball Bearing
