Description

Wide Inner Ring Housings (Light Tapped Base Pillow Block Bearing Housing)

  • Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
  • This range is well known for its versatility between the bearing and housing options as well as ease of installation.
  • PA200 series light tapped base pillow block, stub pillow block cast iron housing with two drilled and tapped holes underneath the base of the housing.

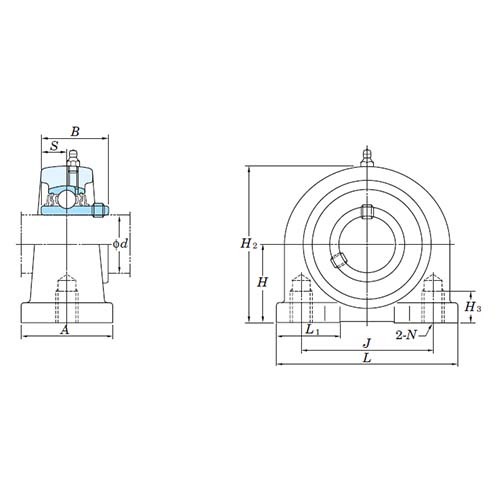

Specifications

  • AIMS SKU A0147776
  • Brand FYH
  • Model Number PA204/FYH
  • L1 (mm) 27
  • Static Load (c0r) kN 6.65
  • J (mm) 52
  • L (mm) 76
  • b (mm) 31
  • Shaft Diameter (d) 12 - 20mm ( 1/2 - 3/4")
  • Dynamic Load (cr) kN 12.8
  • H3 (mm) 13
  • h2 (mm) 60
  • A (mm) 40
  • Shaft Diameter d (mm) 12
  • N (mm) M10 x 1.5
  • Factor Fo 13.2
  • H (mm) 30.2
  • S (mm) 12.7
  • Type Bearing Housing
  • System of Measurement Metric/Imperial
  • Material Cast Iron
  • Item Type Light Tapped Base Pillow Block
SKU: A0147776 On Sale

FYH PA204 Light Tapped Base Block Bearing Housing Suits 12 - 20mm ( 1/2 - 3/4") Shaft

Light Tapped Base Pillow Block Cast Iron Bearing Housing

$11.50
$16.43
