Specifications

AIMS SKU A0177821
Brand EZO
Model Number R4A-ZZ/EZO
Width (mm) 4.978
Chamfer rs (min) (mm) 0.30
Weight (Reference) 2 Shields (g) 4.19
Ball Complement Size Dw (in) 0.094
Ball Complement Size Dw (mm) 2.381
Cage Type J
Max Speed Oil (x1000min -1) 50
Max Speed Grease (x1000min -1) 42
IR Width B (in) 0.196
IR Width B (mm) 4.978
Chamfer rs (min) (in) 0.012
Outer Diameter D (in) 0.625
Bore Diameter d (in) 0.250
Bore Diameter x Outer Diameter x Width (in) 1/4 x 3/4 x 9/32"
Load Rating Cor (N) 617
Load Rating Cr (n) 1480
Width (in) 0.196
Bore Diameter d (mm) 6.350
Outer Diameter D (mm) 15.875

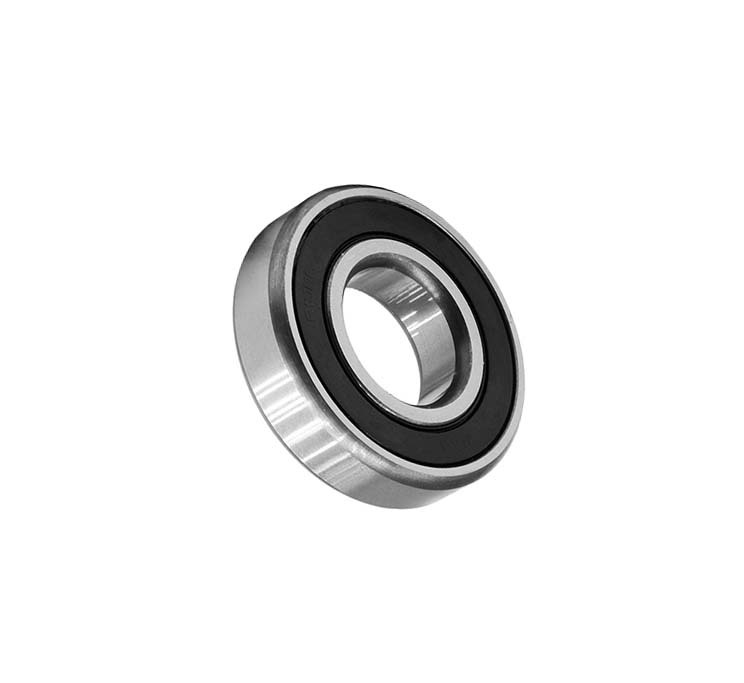

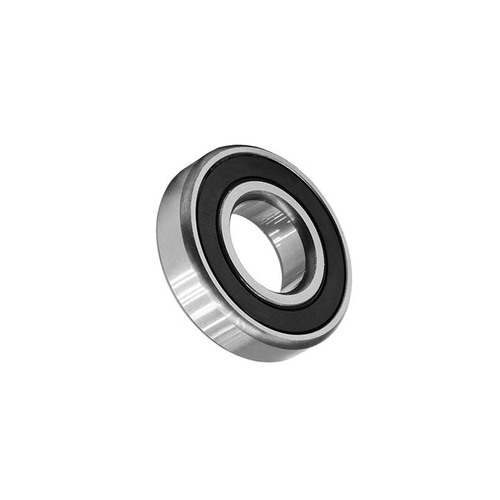

• Type Ball Bearing
• Series Type R Series
