Specifications

AIMS SKU A0177837
Brand EZO

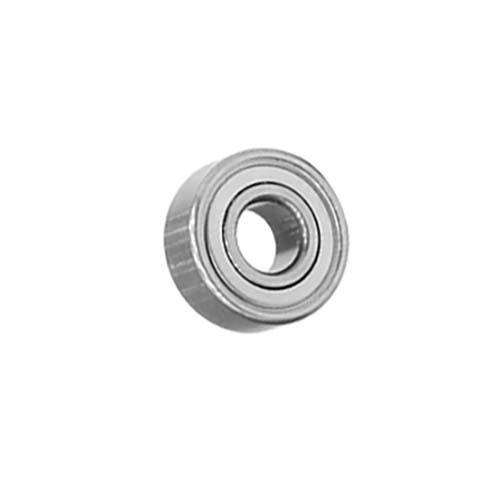

Model Number MR128-ZZ/EZO
Cage Type W
Ball Complement Qty Z (pcs) 12
Width B1 (in) 0.138
Width B1 (mm) 3.5
Bore Diameter d inch 0.315
Bore Diameter d mm 8.0
Weight (Reference) 2 Shields (g) 1.01
Ball Complement Size Dw (in) 0.047
Ball Complement Size Dw (mm) 1.2
Bore Diameter x Outer Diameter x Width (mm) 8 x 12 x 3.5
Max Speed Oil (x1000min -1) 54
Max Speed Grease (x1000min -1) 46
Chamfer rs (min) (in) 0.004
Chamfer rs (min) (mm) 0.10
Outer Diameter D (in) 0.472
Load Rating Cor (N) 275
Load Rating Cr (n) 544
Outer Diameter D (mm) 12.0
