Description

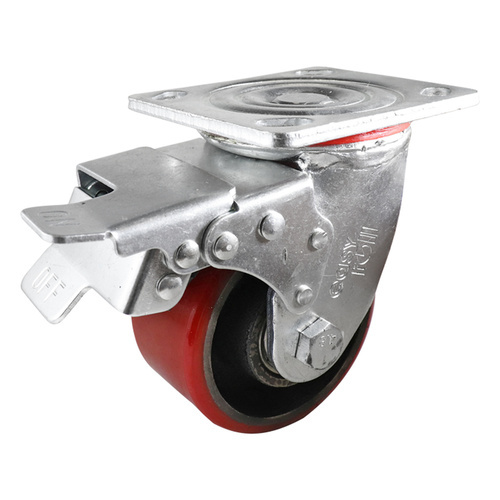

EasyRoll Urethane on Cast Iron Swivel Plate Brake Castor

  • Manufacturing, Factory, Materials Handling.
  • Suitable for use on, heavy sales counters, dollies, trolleys, tool boxes, stillages, Industrial Laundry Equipment, Industrial hospitality equipment, heavy shop fittings, and materials handling.

Key Points

  • Attractive Zinc plated heavy-duty fabricated housing is suited to medium to heavy industrial applications.
  • Heavy-duty fabricated housing with double headset bearing for strength allows the castor to withstand high-impact loads, plus a total locking brake for securing the unit in place.
  • Urethane on Cast Iron offers the highest load capacity while protecting the floor surface.
  • Precision bearings in the wheel for low rolling resistance and minimal push effort.
  • Headset seals protect the bearings from dust & grime, lowering the maintenance & increasing the life of the castor

Note

  • Ensure this product is used for its intended purpose.
  • Adhere to the maximum weight loading.

Specifications

  • AIMS SKU A0182828
  • Brand EasyRoll
  • Model Number J22TZ85K100
  • Barcode Number 1000000043952
  • Tread Width (mm) 41 - 50
  • Load Capacity 320kg
  • Color Red/ Black/ Silver
  • Fitting Type Plate Mount Castors
  • Working Height (mm) 144
  • Castor Type Swivel Brake
  • Weight Category 300kg - 399kg
  • Hole Centres (mm) 76-92 x 67-76
  • Plate Size (mm) 114 x 100
  • Wheel Diameter 100mm
  • Tyre/Wheel Material Urethane on Cast Iron
  • Finished Height (mm) 141 - 160
  • Fork Material Zinc Plated Welded Steel
  • Type Castor
  • Material Zinc Alloy Frame/ Urethane on Cast Iron Wheel
  • Bearing Type Precision Bearings
SKU: A0182828

EasyRoll 100mm Red Urethane on Cast Iron Swivel Plate Brake Castor
