Dixon Flanged OS & Y Gate Valve Table

Description

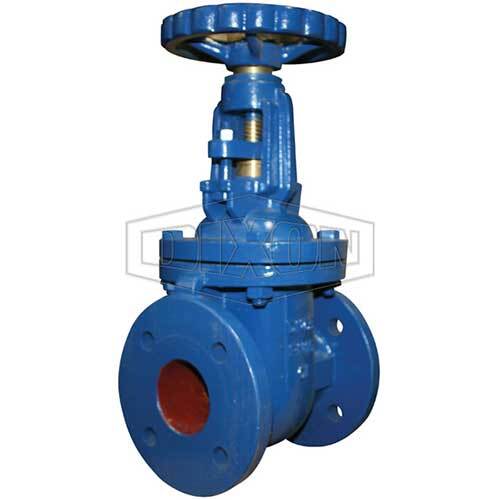

OS & Y Gate Valve Flanged

Flanged AS2129 Table D/E End Connection
Cast Iron body with a wedge; bronze seat
Conforms to BS5150; MSS SP-70.
Flange conforms to BS4504 PN 16; ANSI 125 and drilled to Table E.
Fig GVRC-1161

Applications

Water; oil & gas

Available Options

Sizes 250-600mm available on request; contact Dixon for details.

Specifications

AIMS SKU A0070333

Brand Dixon

Model Number GVRC1161-100D

Size (mm) 100

End Connection Flanged Table D

Pressure Rating (kPa) 1600 at -10°C to 120°C

Dimension (mm) 229 Face to Face

Type Ball Valve
Material Cast Iron
Style Flanged Table D
Item Type Flanged OS & Y Gate Valve
