Description

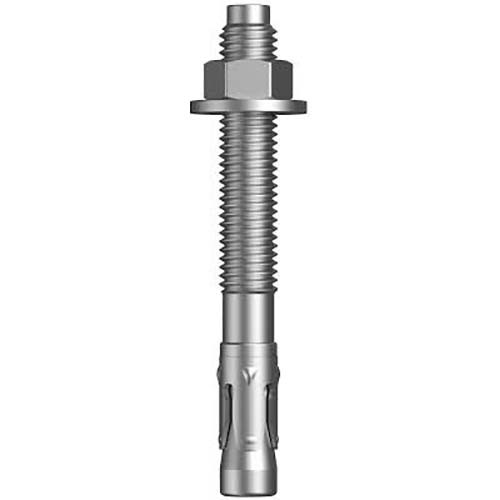

Clawbolt Pro Wedge Anchor C1 Fire Rated Zinc Plated ETA Option 1

  • M8 with ETA Approval (Option 1) and Fire Rating.
  • M10 and M16 with ETA Approval (Option 1), Fire Rating and Seismic Certified (C1).
  • M12 and M20 with ETA Approval (Option 1), Fire Rating and Seismic Certified (C1 and C2).

Features

  • Quick and easy to install.
  • Immediate loading.
  • Intended working life- 50 years.
  • ETA Approval- Option 1.
  • Fire Rated.

Applications

  • Suitable for cracked and non-cracked concrete.
  • Pallet racking.
  • Formwork support fastening.
  • Mechanical, electrical and pipe bracket fixing.
  • Structural columns and beams.
  • Facade installation.
  • Stadium seating.
  • Guide and hand rails.

Specifications

  • AIMS SKU A0133211
  • Length (mm) 90
  • Family Code EAWMSZD17M
  • Threads Per Inch in UNF 24
  • Pitch Fine (mm) 1.25
  • Size M10
  • Threads Per Inch in BSF 20
  • Threads Per Inch in UNC 16
  • Pitch Coarse (mm) 1.5
  • Threads Per Inch in BSW 16
  • Pitch Extra Fine (mm) 1
  • Type Clawbolt Wedge Anchor
  • Finish Zinc Plated
SKU: A0133211

M10 x 90mm Clawbolt Pro Wedge Anchor C1 Zinc Plated Pack of 50

Clawbolt Pro Wedge Anchor C1 Fire Rated Zinc Plated
