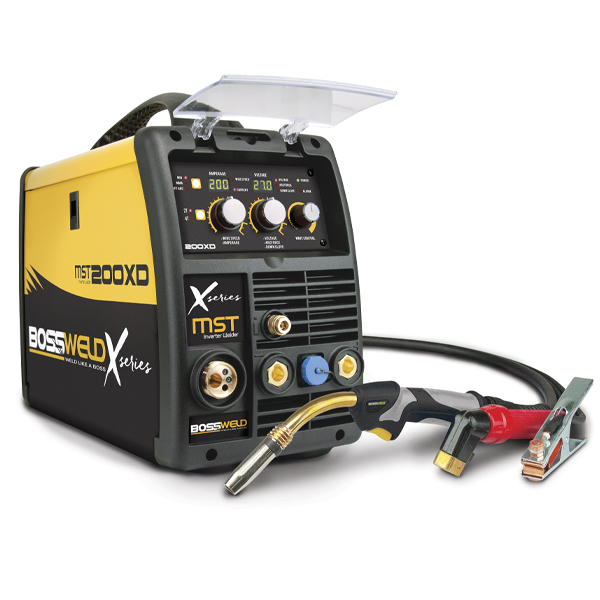

X-Series MST 200XD Multi-Process Machine

  • The Bossweld MST 200XD is a lightweight and portable multi-process inverter-based welder.
  • It provides the opportunity to MIG, Stick, and TIG weld from the same machine, making it the ideal choice for your next welding project.

Package Inclusion

  • MST 200XD Inverter Welder
  • 4m Ergon BZ24 MIG Torch
  • 3m Twist lock Electrode Holder
  • 3m 200Amp Earth clamp
  • 2m Quick Connect Gas Hose
  • Bossweld Twin Gauge Argon Regulator
  • Drive Rollers (not shown): 0.8 / 0.9mm V Groove Roller (fitted) 0.8 / 0.9mm Knurled spare
  • Operator Manual

Feature

  • 200 Amp output
  • MIG /Stick /TIG welder
  • Fitted 15 Amp plug
  • Digital LED display
  • DC TIG lift arc start
  • Excellent arc stability
  • Gas /gasless operation
  • 2T / 4T trigger latching
  • Stepless amperage control
  • Generator safe
  • Suits D100/D200 spools
  • Spool gun ready

Specifications

  • AIMS SKU A0122122
  • Brand Bossweld
  • Model Number 699200
  • Type Multi Process Machine
  • Minimum KVA 8
  • Protection Class IP21S / S
  • I Max TIG 20A
  • Duty Cycle @ 40°c Tig 20% @ 140A
  • Thermal Overload Protected Yes
  • I Eff 9.9A
  • Output Current Range 16-140Amps
  • Duty Cycle @ 40°c Mma 10% @ 140A
  • Electrode Diameter Range 1.6mm to 3.2mm
  • I Max MMA 31A
  • Open Circuit Voltage 68V
  • Power Supply /Primary Input Power Single Phase, 240V 50-60 HZ, +/-15%
SKU: A0122122 On Sale

Bossweld MST 200XD Inverter 15 Amp MIG Stick TIG 3 in 1 Welder 240 Volt

X-Series MST 200XD Multi Process Welding Machine

$1,095.41
$1,153.06
