Description

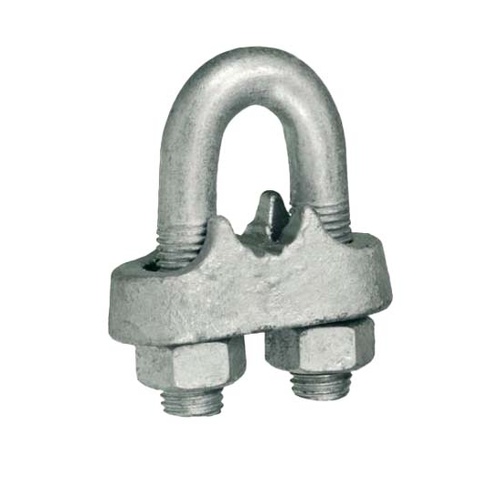

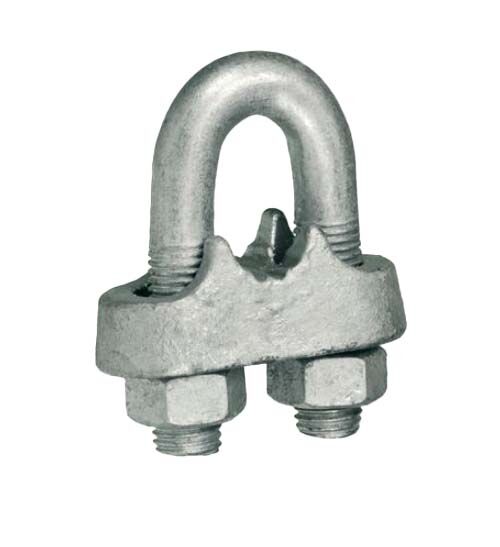

Austlift Wire Rope Grip A/S Type Galvanised

  • Conforms to AS2076 and marked with AS and size under saddle.
  • Heavy duty cast steel saddle and hitensile U-bolt comes with larger nut size for greater tightening force.
  • 6mm and 8mmmm U-bolt with dacromet finish.
  • Sizes available are from 6mm to 52mm.
  • Hot dipped galvanized finish on both U-bolt and saddle.
  • Not For Lifting Purposes.

Specifications

  • AIMS SKU A0209176
  • Brand Austlift
  • Model Number 301528
  • Barcode Number 9345339011305

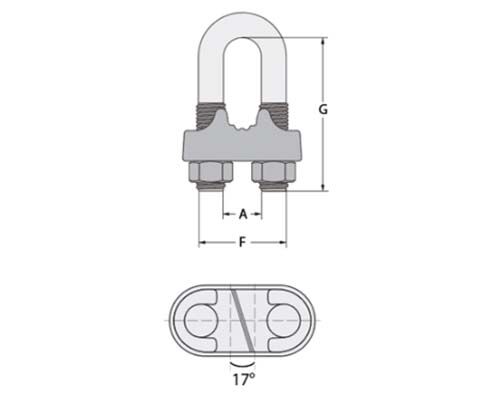

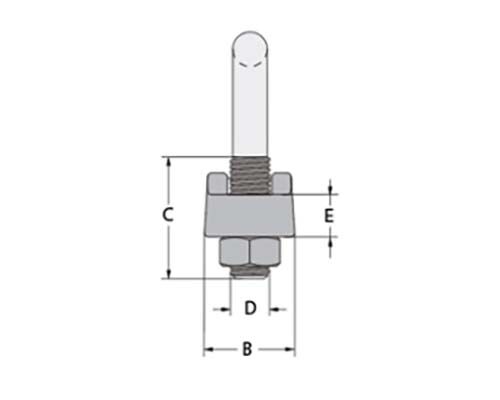

  • Dimension A (mm) 29.5
  • Dimension B (mm) 50
  • Dimension C (mm) 66
  • Dimension E (mm) 27
  • Dimension F (mm) 92
  • Dimension G (mm) 104
  • Dimension D M20
  • Weight (kgs) 1.56
  • Wire Size 28 mm
  • Type Wire Rope Grip
SKU: A0209176

Austlift Wire Rope Grip A/S Type Galvanised 28mm - 301528

Austlift Wire Rope Grip A/S Type Galvanised

$14.56
