Description

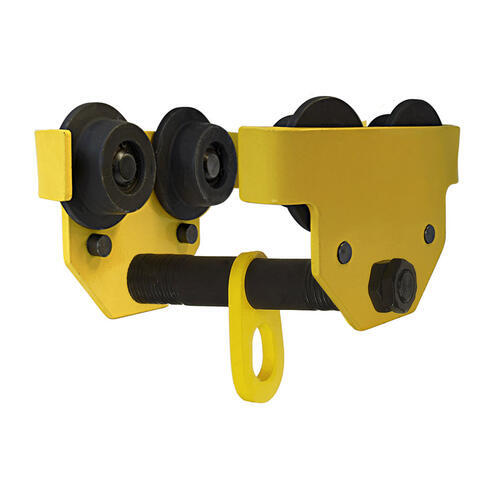

Austlift Push Trolley Model PT01

Austlift girder trolley is moved by pushing the load lifted by the trolley, running along the flange of a monorail. A main shaft with spacers you can adjust the width of UC beam. They are widely used in factories, mines, wharves, docks, warehouses and engineering workshops for the installation of equipment in places where no power supply is available.

High quality sealed ball bearings.
Identification tag with serial number.
Fitted with anti-drop plates for safety. Low headroom by design.
Suitable for I beam (UC Beam)

Specifications

AIMS SKU A0168340

Brand Austlift

Model Number 131020

Weight (kg) 24.3

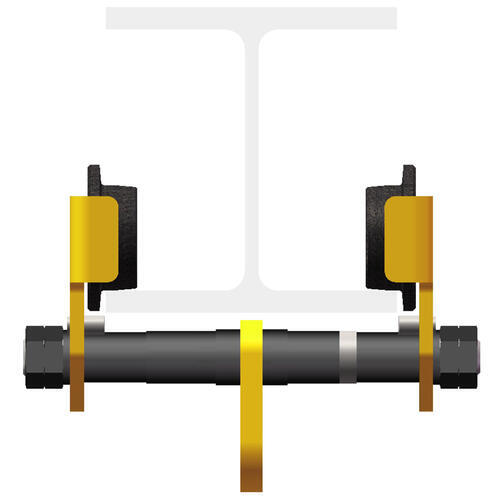

Dimension A (mm) 436

Dimension B (mm) 320

Dimension C (mm) 295

Dimension D (mm) 166

Dimension H (mm) 32

WLL (T) 3

Beam Size (mm) 100 - 305

Min. Radius Of Curve (m) 1.2

Type Push Trolley

Calculate Shipping

Resources

Instruction Manual

Browse other products under

Trolleys

Browse other products by

Austlift

Reviews

Easy to fit, runs beautifully..

"I purchased this truck to match a 1T Auslift block and tackle, giving me flexibility over where I can use it. It was simple to fit to my 78mm i-beam and the combination of spacers allowed me to get a solid, secure fit. It rolls effortlessly, even with a significant weight on it. The service from AIMS was, as always, fantastic. Highly redommended."

- Simon
